Craftsman 917.293301 - Manual (Page 26)

TILLER - - MODEL NUMBER 917.293301

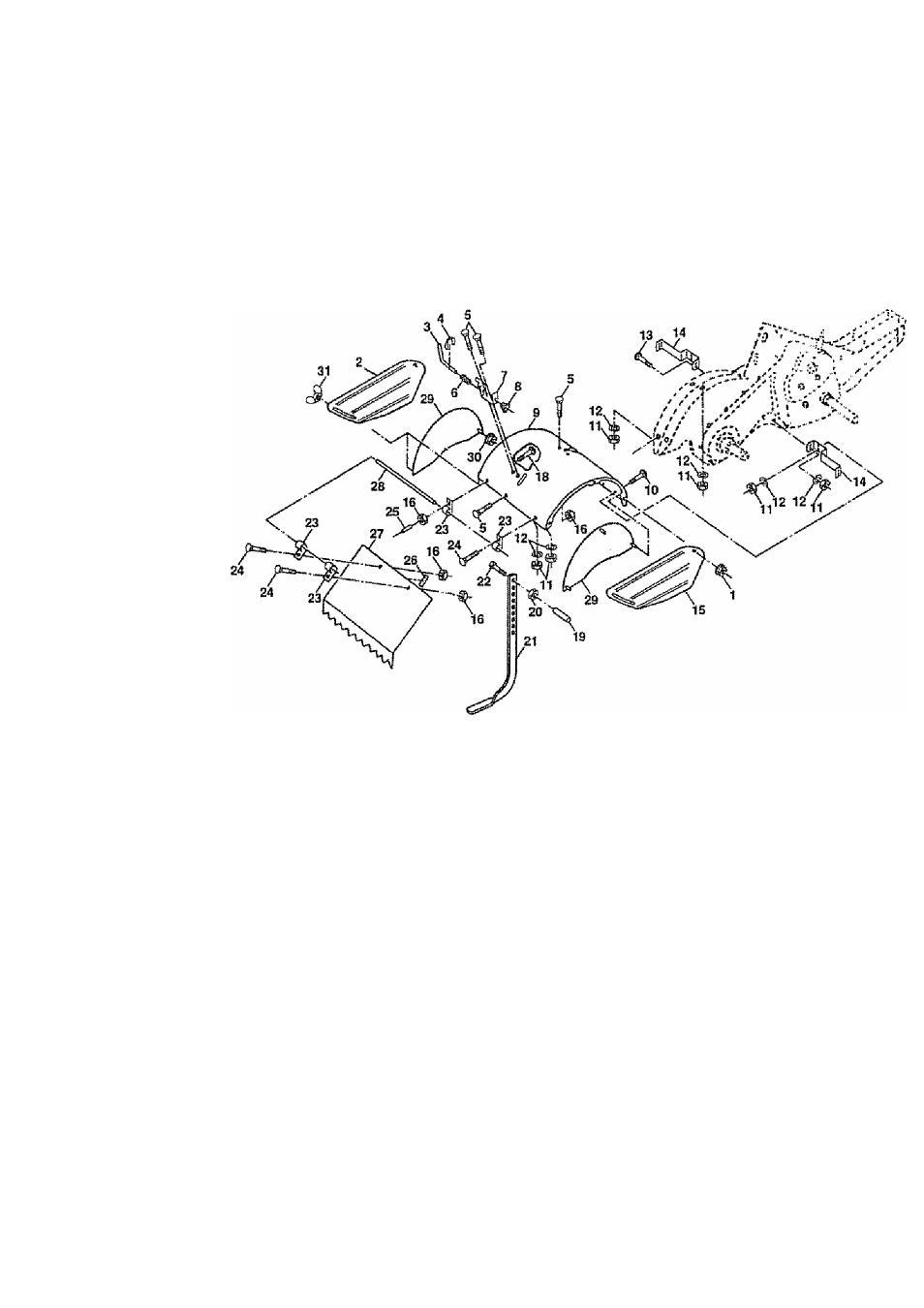

TINE SHIELD
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO.
NO. NO.
1 93000129 Nut Flange 5/16-18
17 162175 Nut, Wing Forged 5/16-18
2 161415X574 Shield, Side, Outer L. H.
18 STD532512 ’Bolt, Carriage 1/4-20 x 1-1/4
3 0393J Pin, Stake, Depth
Gr. 5
4 12000036 Ring, Klip
19 10270IX Grip
S STDS33107 *Bolt, Carriage 5/16-18 x 3/4 Gr
20 STD541037 ’Nut, Hex 3/8-16
5
21 102156X Stake, Depth
6 8394J Spring
22 74930632 Bolt, Hex 3/8-16 x2
7 8392J Bracket, Latch
23 4440J Hinge
a 109230X Spring, Depth Stake
24 72140404 ‘Bolt, Carriage 1/4-20 x 1/4
9 124289X574 Shield, Ttne
25 6712J Cap, Vinyl
10 STO533110 *BolL Carriage 5/16-18 x 1 Gr. 5
26 109227X Pad, Idler
11 STD541031 *Nut, Hex 5/16-18
27
•i AOilQii VC'Tyi 1 i ^ Shield, Leveling
12 w 1 L/OD 1 10 1‘Washer, Lock S/16
28 120S88X Pin, Hinge
13 72110510 Bolt, Carriage 6/16-18 x 1-1/4
29 124309X574 Shield, Side
14 124311X Bracket. Shield Tine
30 73970500 Locknut, Hex, Flange
15 161414X574 Shield, Side, Outer R.H.
31 162175 Wing Nut
16 73510400 Nut, Hex 1/4-20 * STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: Al) component dimensions given in U S. inches
1 inch = 25,-4 mm
26
