CRAFTSMAN 8.5HP SNOW THROWER 536.881851

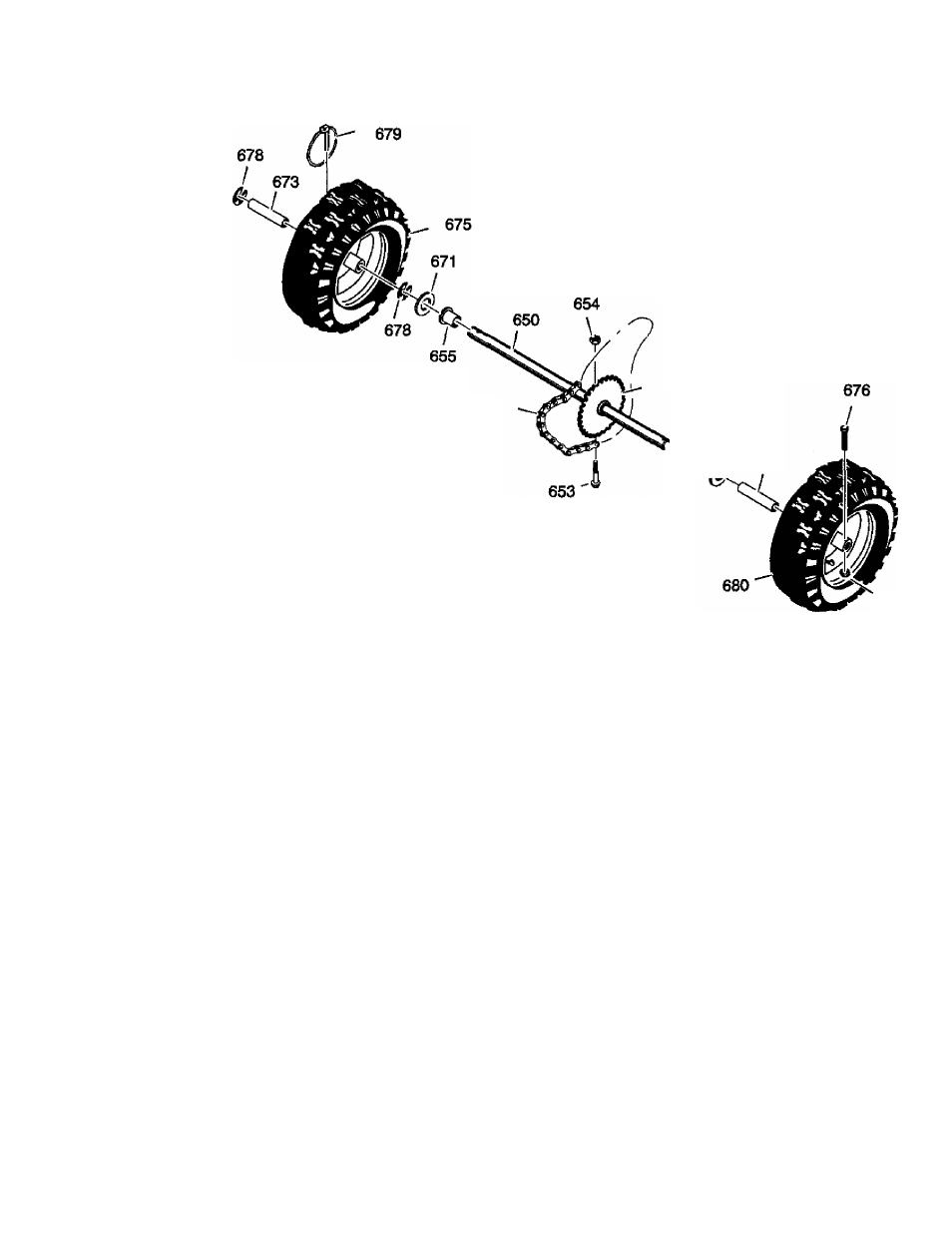

WHEELS
Ref. Drive Page
652
655
/
671
673
677
Key No.
Part No.
Description
650
1501563
SHAFT, AXLE
652
1501089
SPRKT & HUB
653
01x193
SCREW, 1/4-20
X
1.75
654
15X145
NUT, 1/4-20 HEX NYLOCK YZ
655
1501114
BEARING, AXLE
671
712120
WASHER, FLAT
673
1501138
BUSHING, WHEEL
675
1501808
TIRE & RIM -RIGHT
676
577015
SCREW, 1/4-20X1.75 HH
677
15X145
NUT, 1/4-20 HEX NYLOCK YZ
678
239
RETAINER, RING (5115-75)
679
73842
PIN, KLIK .25X1.38 DIA
680
1501809
TIRE & RIM -LEFT
