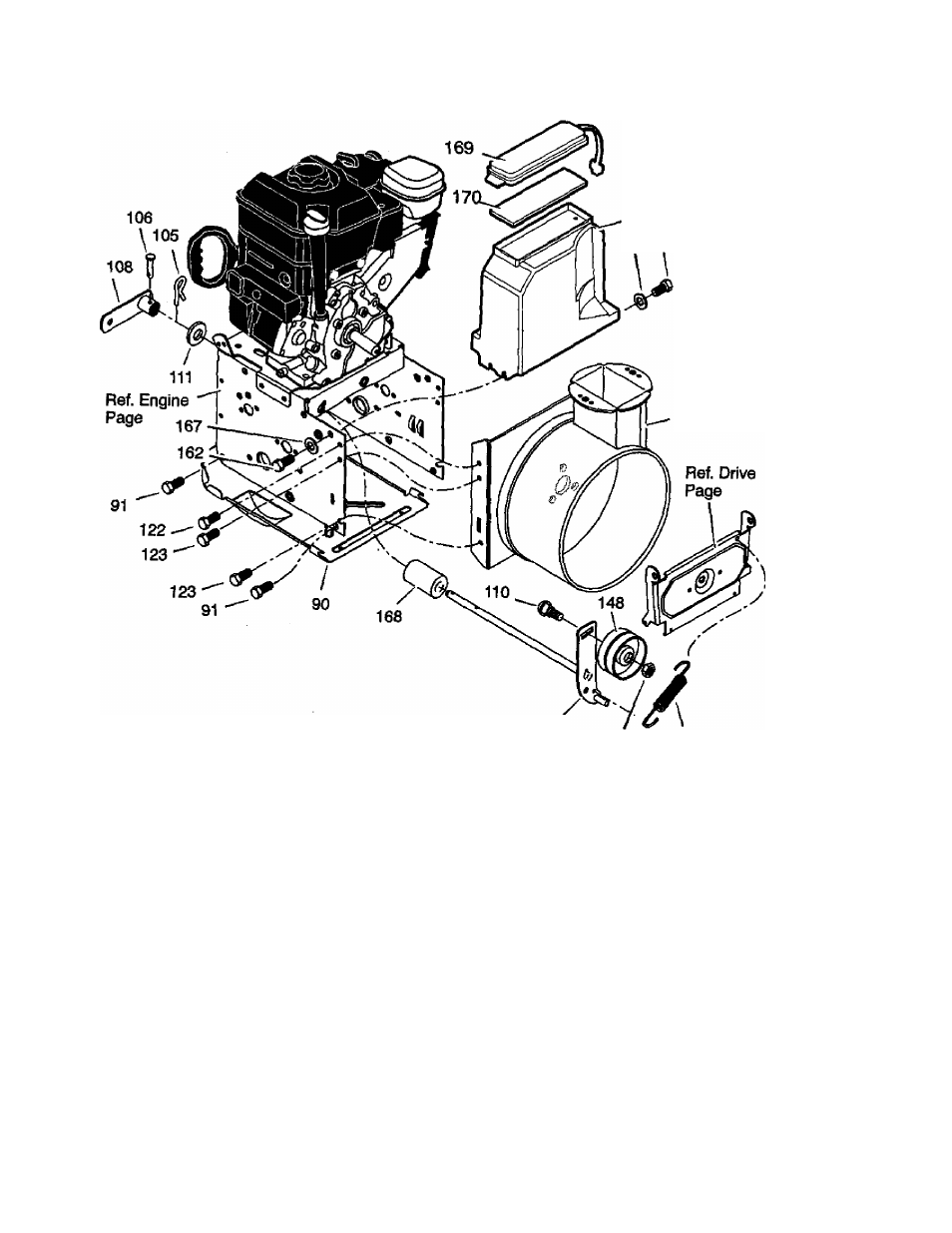

CRAFTSMAN 8.5HP SNOW THROWER 536.881851
FRAME
160
162
167
Ref. Auger
Housing
Page
103
149
107
Key
No.
Part No.
Description
Key
No.
Part No.
Description
90
1501055E701
COVER, BOTTOM
123
25x020
SCREW 5/16-18x1/2
91
310169
SCREW 1/4-20x5/8
148
50793
PULLEY, IDLER
103
1501226 YZ
IDLER. AUGER
149
590
NUT, JAM 3/8-16
105
711682
PIN, HAIR
160
1502167
COVER, BELT
106
761761
PIN, CLEVIS
162
26x306
SCREW 1/4-20x3/4
107
165x159
SPRING, TENSION
166
71067
WASHER, FLAT
108
761675 YZ
SPRING ATTACH
168
1501200
SPACER
110
585781
BOLT, CARRIAGE
169
760539
LID, TOOL BOX
111
711617
WASHER, PUT
170
761187
PAD, FOAM
122
25x021
SCREW 5/16-18x3/4
