CRAFTSMAN 8.5HP SNOW THROWER 536.881851

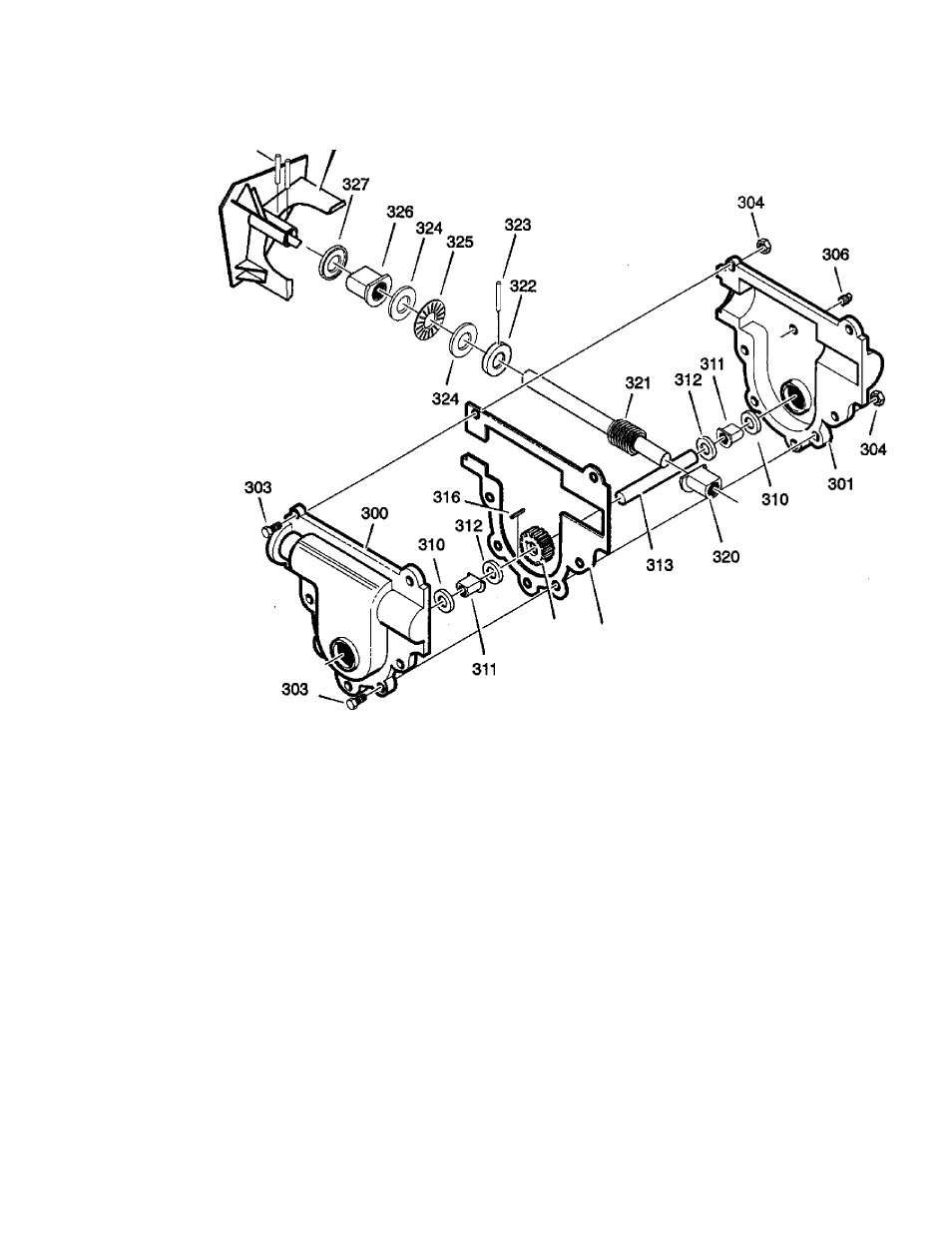

GEAR CASE
341
340
315 314
Key
No.
Part No.
Description
Key
No.
Part No.
Description
300
10577
CASE, GEAR, RH
320
50221
BEARING, FL
301
10576
CASE, GEAR, LH
321
1501191
SHAFT, INPUT
303
710025
SCREW 1/4-20x3/4
322
580295
COLUR, THRUST
304
15X143
LOCKNUT 1/4-20
323
454565
PIN, SPRING 1/4x1
306
9344
SCREW. PLUG
324
48275
WASHER, FLAT
310
9566
SEAL, OIL
325
50684
BRNG, ROLL
311
50304
BEARING, FL
326
50304
BRNG, FL
312
48275
WASHER, FUT
327
9566
SEAL, OIL
313
1501307
SHAFT. OUTPUT
340
1501188E701
IMPELLER
314
51279
GASKET
341
454565
PIN, SPRING 1/4x1
315
51405
GEAR, WORM
it
750319
lOoz GREASE
316
431787
KEY, WOODRUFF #61
41
{NOT ILLUSTRATED)
