SERVICE AND ADJUSTMENT
How To Remove
The Traction Drive Belt
If the snow liirower will not move for­
ward, check the traction drive belt for
wear or damage. If the traction drive
belt is worn or damaged, replace the
belt as follows.
1. Disconnect the spark plug wire.
2. Remove the auger drive belt See
“How To Remove The Auger Drive
Belt” in the Sen/ice And Adjustment
section.
3. Remove the e-ring from one end of
the swing plate axle rod. Remove
the swing plate axle rod to allow
the swing plate to pivot forward (see
Figure 29).
4. Remove the traction drive spring.
5. Remove the old traction drive belt
from the traction drive pulley and
from the engine pulley. Replace
the traction drive belt with an origi­
nal equipment replacement belt
available from a Sears service cen­
ter.
6. Install the new traction drive belt
onto the traction drive pulley and
onto engine pulley.
7. Make sure the traction drive idler
pulley is properly aligned with the
traction drive belt.
8. Attach the traction drive spring.
9. Install the swing plate axle rod and
secure with the e-rIng removed
earlier.
10. Ttie bottom of the swing plate must
be positioned between the align­
ment tabs. Make sure the swing
plate Is properly secured (see
Figure 30),

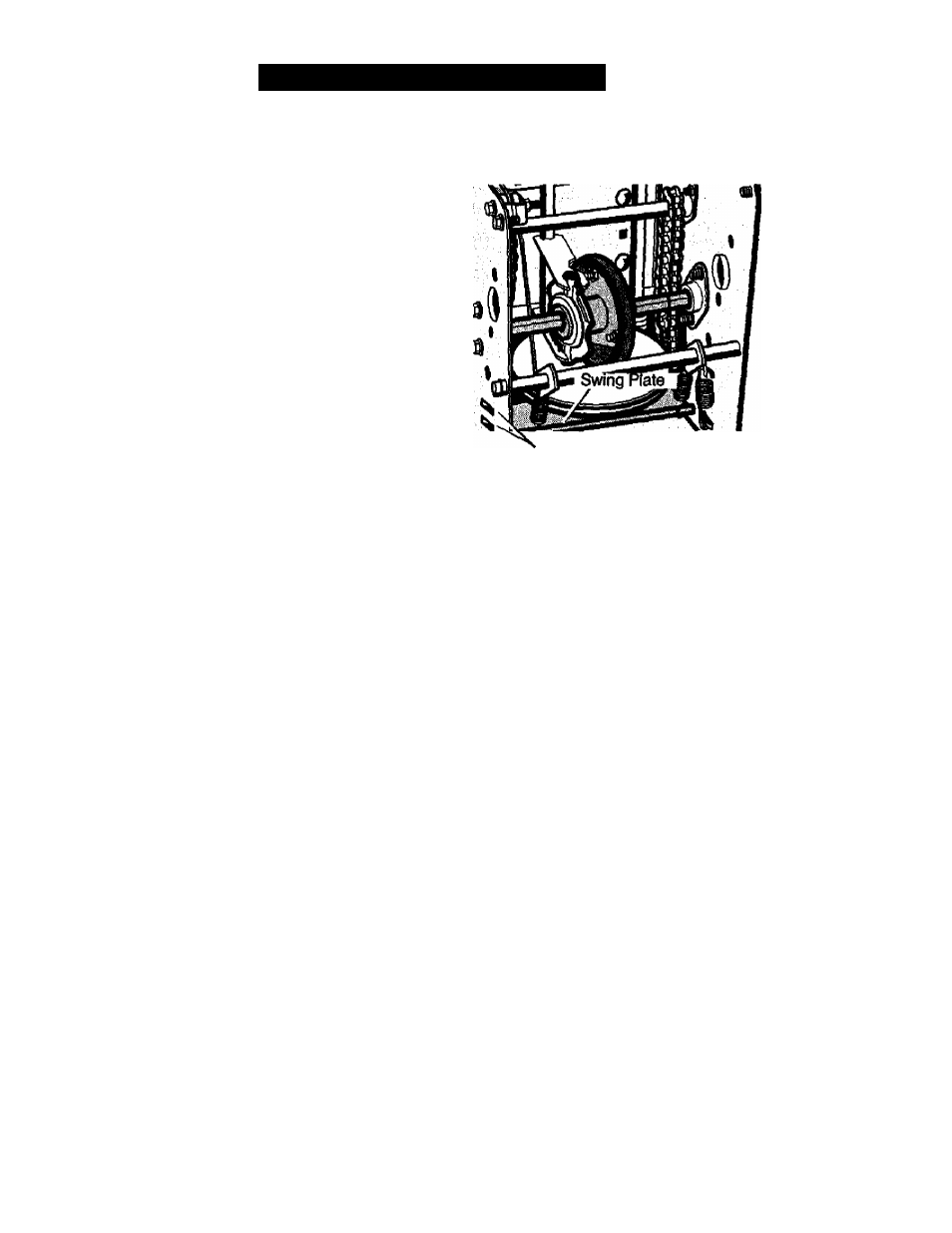

Alignment Tabs Figure 30
26
NOTE: If the drive will not engage
after the traction drive belt has
been replaced, then check to
make sure that the swing plate is
positioned between the align­
ment tabs.
11. Install and adjust the auger drive
belt. See “How To Remove The Au­
ger Drive Belt” in the Service And
Adjustment section.
12. Adjust the belt guide. See “How To
Adjust The Belt Guide” in the Ser­
vice And Adjustment section.
13. Install the bottom panel (see
Figure 27).
14. Tighten the bolts on each side of
the bottom panel.
15. Install the belt cover. Tighten
screw (see Figure 25).
16. Check the adjustment of the cables.
See “How To Check And Adjust The
Cables” in the Service And Adjust­
ment section.
17. Connect the spark plug wire.
