Vídeo Component Hookups
Audio/video cords (not supplied)
Whon atnnoctini; a cord, bo sure to miitch the color-coded pins to
the »ippropriiito jiK'ks on the compononts.
Required cords
Yellow (video)
White (L/audio)^4ISi=^
Red (R/audio)
Yellow (video)
White (L/audio)
Red (R/audio)
Video cord for connecting a TV monitor (not supplied)
You can use the video cord ot the supplied audio/ video/control
S cord (see pages 12 and 13 for details).
Q]fB lt= Yellow

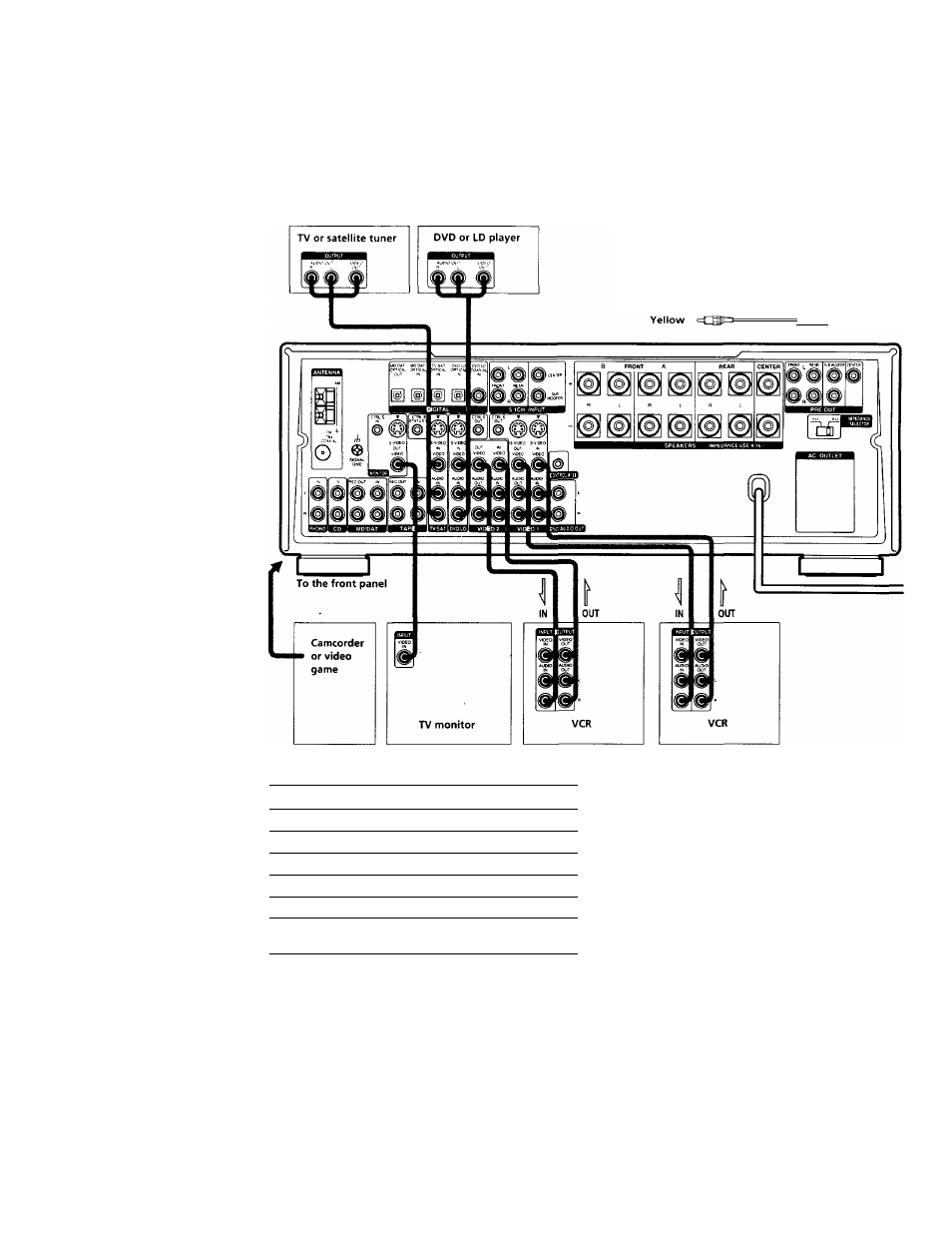

Jacks for connecting video components
Connect a
To the
TV or satellite tuner
TV/SAT jacks
VCR
VIDEO 1 jacks
Additional VCR
VIDEO 2 jacks
DVD or LD player
DVD/LD jacks
TV monitor
MONITOR VIDEO OUT jack
Camcorder or video game
VIDEO 3 INPUT jacks on the
front panel
Note on video component hookups
You can connect your TV's audio output jacks to the TV /
SAT AUDIO IN jacks on the receiver and apply sound
effects to the audio from the TV. In this case, do not
connect the TV's video output jack to the TV/SAT VIDEO
IN jack on the receiver. If you are coimecting a separate
TV tuner (or satellite tuner), connect both the audio and
video output jacks to the receiver as shown above.
? When using the S-video jacks instead of the video jacks
Your monitor must also be connected via an S-video jack. S-video
signals are on a separate bus from the video signals and will not
be output through the video jacks.
