5.1CH input Hookups
Although this receiver incorporates a multi channel
decoder, it is also equipped with 5.1CH INPUT jacks.
These connections allow you to enjoy multichannel
software encoded in formats other than Dolby Digital
(AC-3) and DTS. If your DVD player is equipped with
5.1CH OUTPUT jacks, you can connect them directly to
this unit to enjoy the sound of the DVD player's multi
channel decoder. Alternatively, the 5.1CH INPUT jacks
can be used to connect an external multi channel decoder.
To fully enjoy multi channel surround sound, you will
need five speakers (two front speakers, two rear speakers,
and a center speaker) and a sub woofer. Refer to the
instruction manual supplied with your DVD player, multi
channel decoder, etc., for details on the 5.1 channel input
hookups.
Audio cords (not supplied)
Two for the 5.1CH INPUT FRONT and REAR jacks
Required cords
White (L)
Red (R)
White (L)
Red (R)
Monaural audio cords (not supplied)
Two for the 5.1CH INPUT CENTER and SUB WOOFER jacks
Black =r~gto= Black
O
O
2T
3'
to
c
■o
y
A
n
o
3
■o
0
3
3
Video cord (not supplied)
One for the DVD/LD VIDEO IN jacks (etc.)
OVD player.
Multichannel decoder, etc.
Yellow Yellow
Note
When using the connections described below, adjust the level of
your surround speakers and sub woofer from the DVD player or
multichannel decoder.

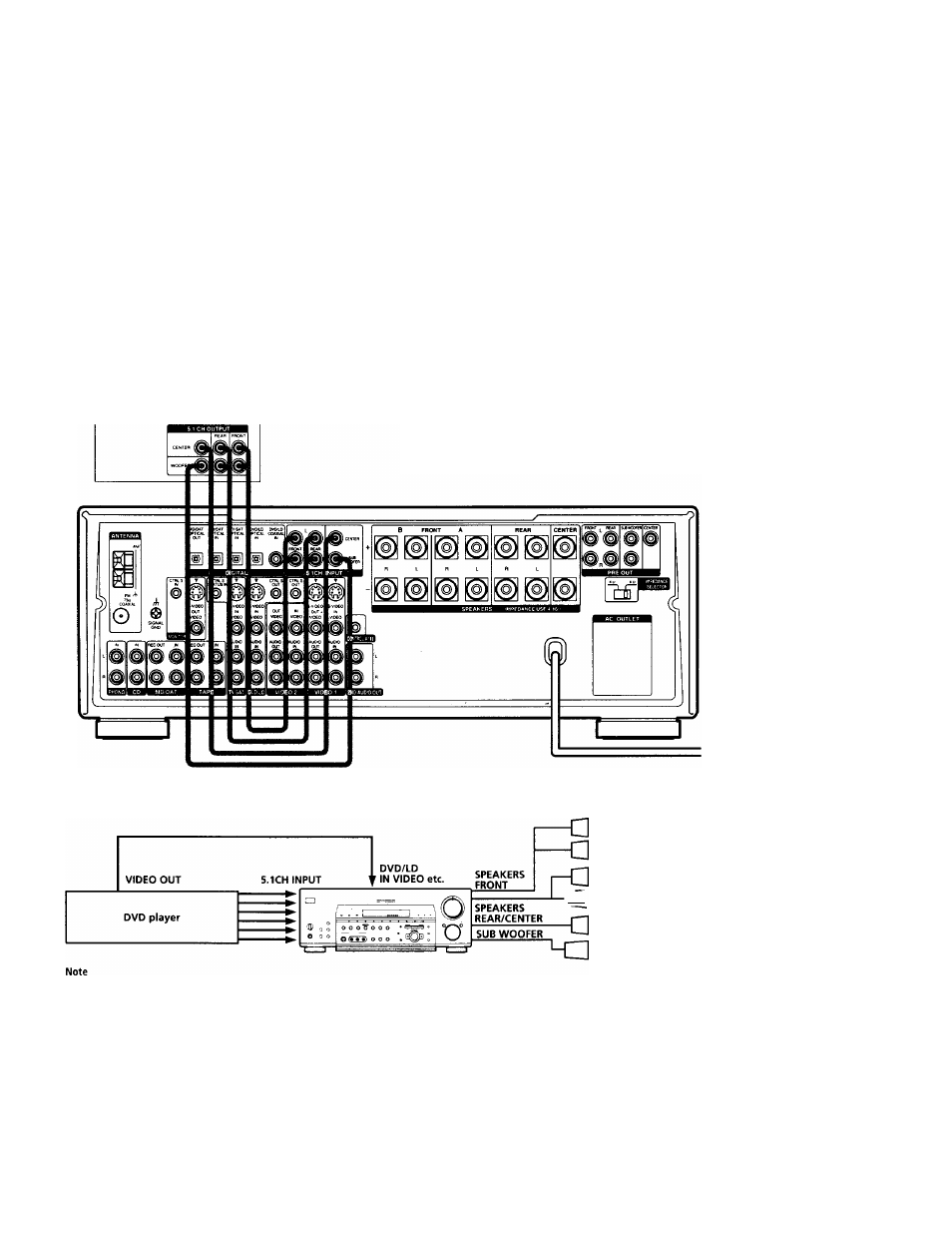

Example of a DVD player hookup using the 5.1CH INPUT jacks
Rear Speaker (L)
-[ ~| Rear Speaker (R)
Center Speaker
Active Sub Woofer
See page 15 for details on speaker system hookup.
