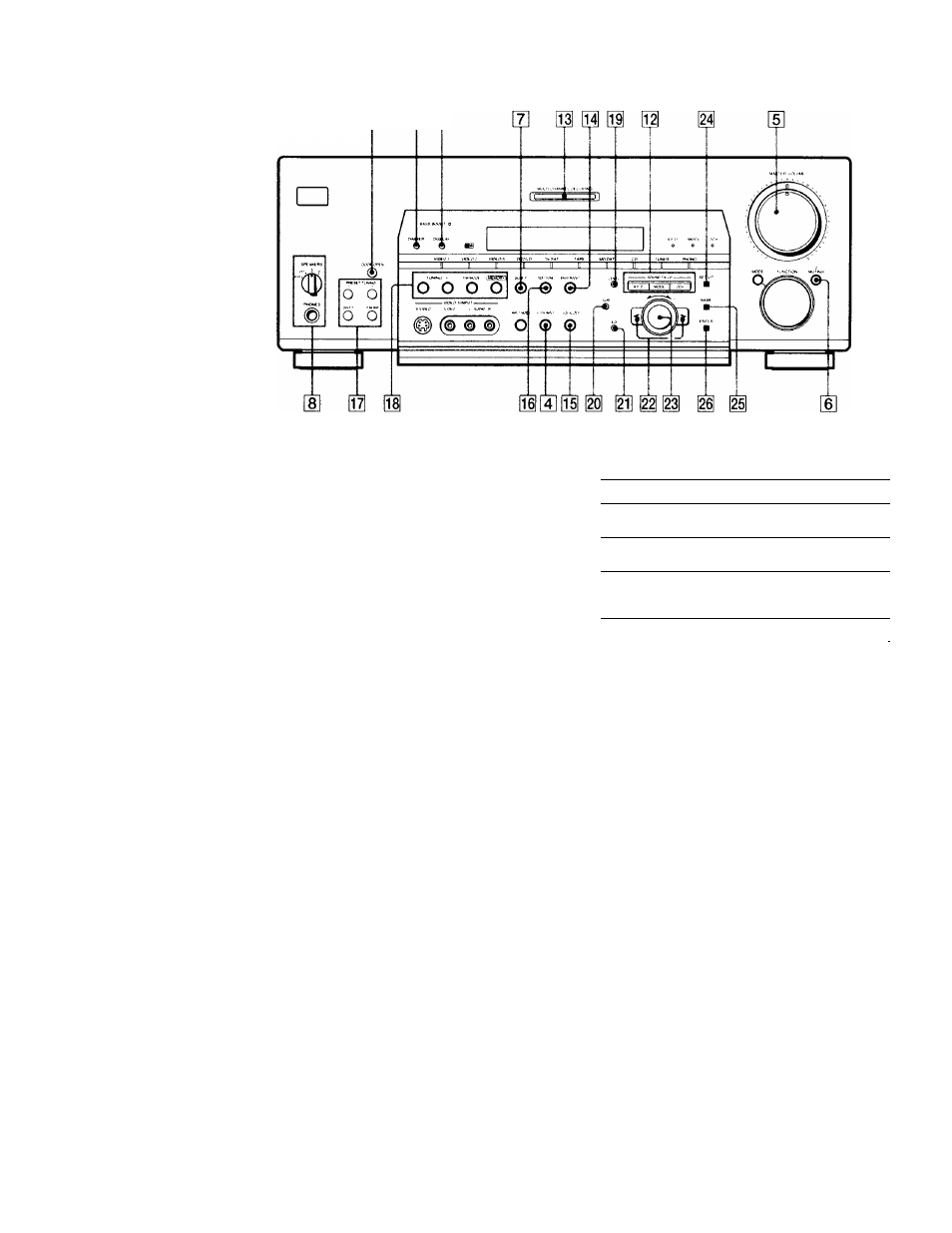

=ront Panel Parts Description
[9]
m m
g 5.1CH INPUT button
Press to enjoy the audio source connected to the 5.1CH
INPUT jacks.
• When the 5.1CH INPUT is selected, the test tone, equalizer,
bass booster, and sound field effects do not function.
• To change the video input displayed when 5.1CH INPUT is
selected, press MODE ([^) to display "V:XXX" then rotate
FUNCTION (see page 27 for details).
5] MASTER VOLUME control
After turning on the component you selected, rotate to
adjust the volume.
3] MUTING button
Press to mute the sound. The indicator above the
button lights up when the sound is muted.
g SLEEP button
Press to select the time after which the receiver turns
off automatically (see page 49).
I
SPEAKERS selector
Set according to the front speakers you want to drive.
Set to
To select
A
The speakers connected to the FRONT
SPEAKERS A terminals
B
The speakers connected to the FRONT
SPEAKERS B terminals
A+B*
The speakers connected to both the FRONT
SPEAKERS A and B terminals (parallel
connection)
OFF
No speaker output
•
Be sure to connect front speakers with a nominal impedance of 8
ohms or higher and set the IMPEDANCE SELECTOR to "40."
if you want to select both sets (A+B) of front speakers.
PHONES jack
Connects headphones.
• To use the headphones, set the SPEAKERS selector to OFF
to output sound to the headphones.
• To enjoy surround sound from the headphones, we
recommend selecting the HEADPHONE THEATER sound
field. Selecting other sound fields when the SPEAKERS
selector is set to OFF automatically presents a 2 channel
(stereo) downmix from the headphones.
I
DOOR OPEN button
Press to open the door on the front panel.
