STR-DB930

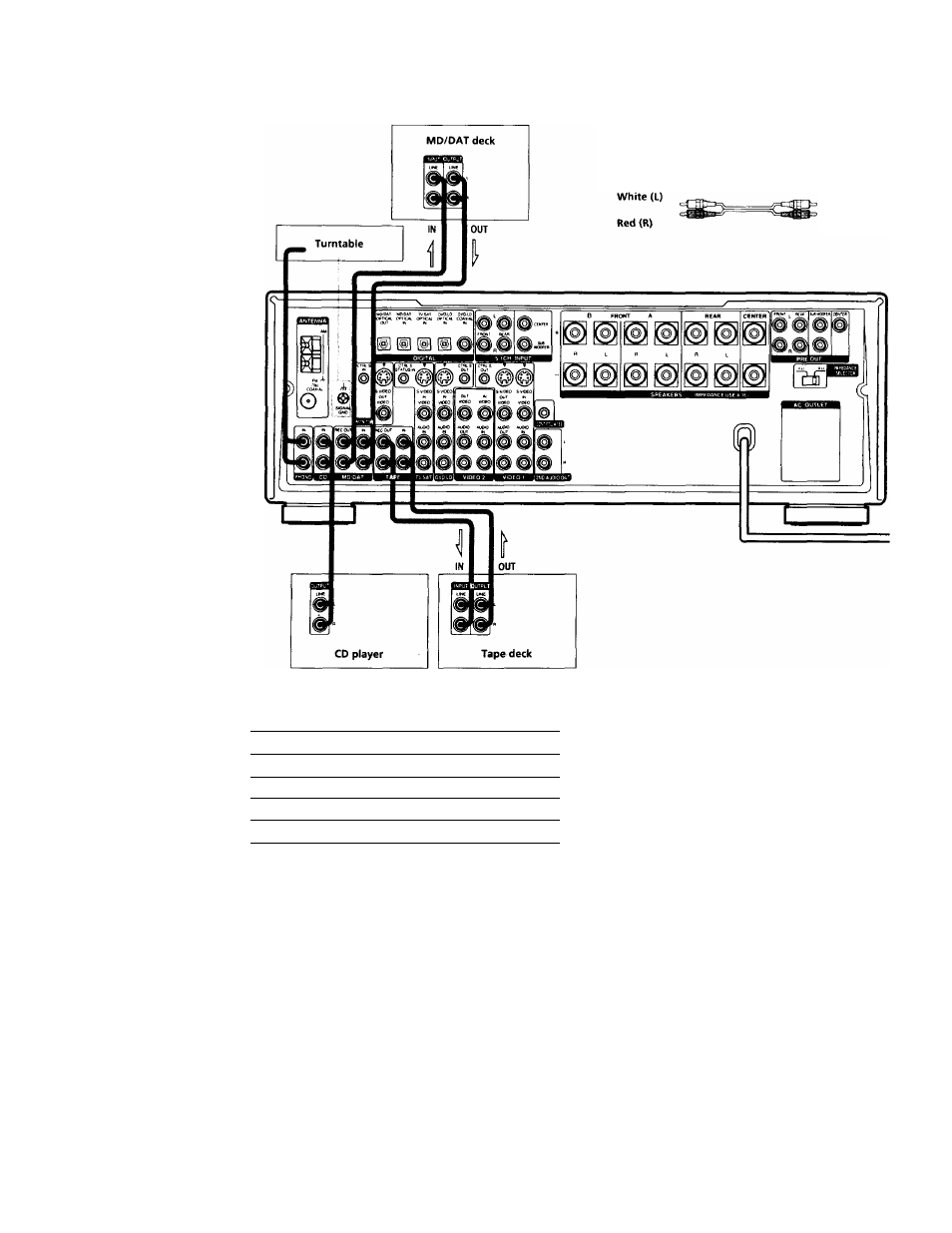

Audio Component Hookups
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
White (L)
Red (R)
Jddcs for connecting audio components
Connect a
To the
Turntable
PHONO jacks
CD player
CD jacks
Tape deck
TAPE jacks
MD deck or DAT deck
MD / DAT jacks
Notq on audio component hookups
If your turntable has a ground wire, connect it to the
rh
SIGNAL GND terminal on the receiver.
