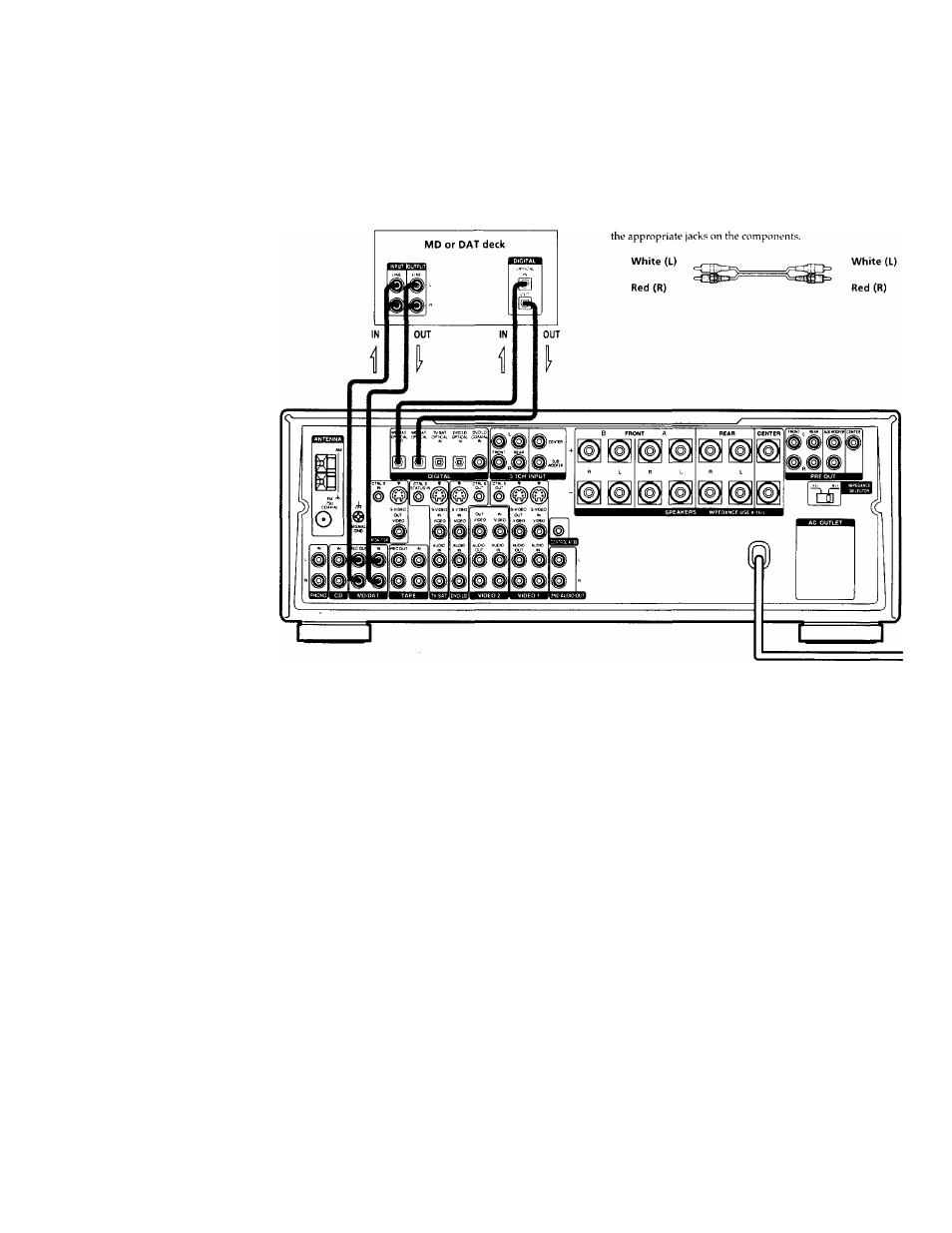

Digital Component Hookups
Connect the digital output jacks ot vour MD or DAT deck
to the receiver's digital input jack and connect the digital
input jacks ot vour MD or DAT deck to the receiver's
digital output jack. These connections allow vou to make
digital recordings ot a CDs played back through vour
DVD (or LD player) and satellite broadcasts.
Required cords
Optical digital cords (not supplied)
Black ....... :S3=
Black
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
Notes
• Please note that you cannot make a digital recording of a digital multi channel surround signal.
• To make a digital recording from your CD player, connect-the CD player's digital output directly to the digital input on your MD or DAT
deck. Refer to the instructions supplied with your CD player and MD or DAT deck for details.
• The DVD/LD OPTICAL and COAXIAL jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling frequencies.
• The TV/SAT OPTICAL IN jack and MD/DAT OPTICAL IN and OUT jacks are compatible with 32 kHz, 44.1 kHz, and 48 kHz sampling
frequencies.
• It is not possible to record analog signals to TAPE and VIDEO with only digital connections. To record analog signals, make analog
connections. To record digital signals, make digital connections.
• Input signals with 96 kHz sampling frequencies to the DVD / LD OPTICAL or COAXIAL jacks. Using other jacks may result in
intermittent sound.
