Hooking up to a VCR or stereo system

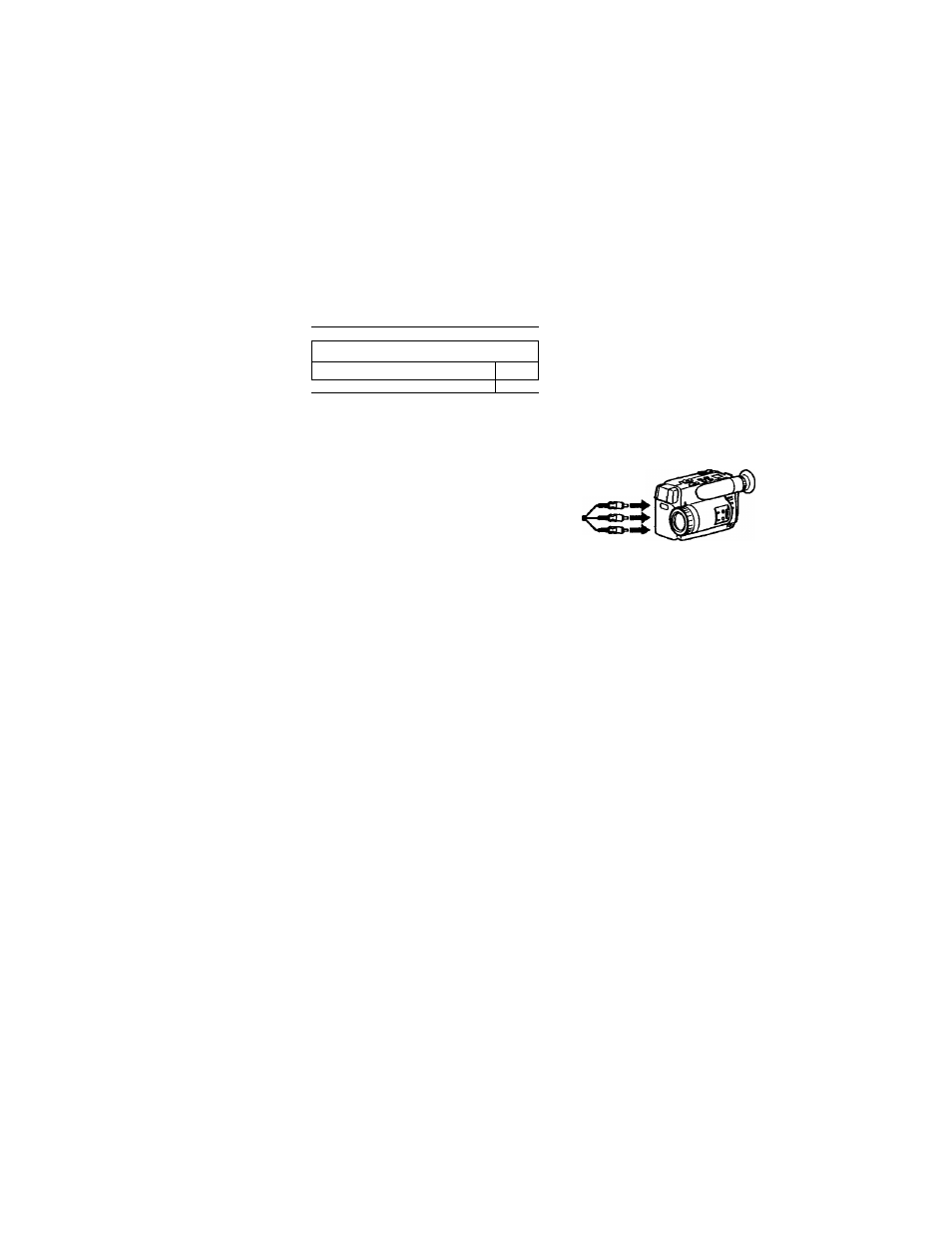

How to hook up to record on this VCR
This VCR (Recorder) TV
É1 O 1 1
n f • 1 l o o o o
I
LINE-2 IN
Other VCR (Player)
UNE OUT
------------------ ^----------
VMC-810HG audio/video cable
Crî:^: Signal flow (not supplied)
How to hook up to a stereo system
Connect LINE-2 IN AUDIO on this VCR to the audio output jacks on the
stereo system, using the RK-C510KS audio cable (not supplied).
If the other VCR has a CONTROL S OUT jack for synchronized editing
Hook up to record on the other VCR, ^en connect the VCRs via the
CONTROL S jacks. Thé CONTROL S connection lets you control (pause and
release pause) both VCRs from the recording VCR.
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type and connected to this VCR's LINE-2 IN jacks,
cormect tile audio plug to tiie AUDIO L (white) jack. The sound is recorded on both
right and left chaimels. When connecting to the AUDIO R (red) jack, the sound is
recorded only on the right chaimeL
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other
VCR, select the input correctly to prevent a humming noise.
• You can also use the LINE-1 IN jacks for editing. If the other VCR is a monaural
type, the sound is recorded only on the chaimel whose jack is coimected to the
audio plug. To record on both right and left chaimels, cormect the audio plugs to
the AUDIO R/L jacks using a VMC-910HG audio/video cable (not supplied).
• If the CONTROL S IN jack is used for S-Link™ (A/V bus control) with a TV, the
CONTROL S cormection carmot be used for editing.
38 Editing
