Connecting the Stereo
Inserting the Batteries
Setting the Clock

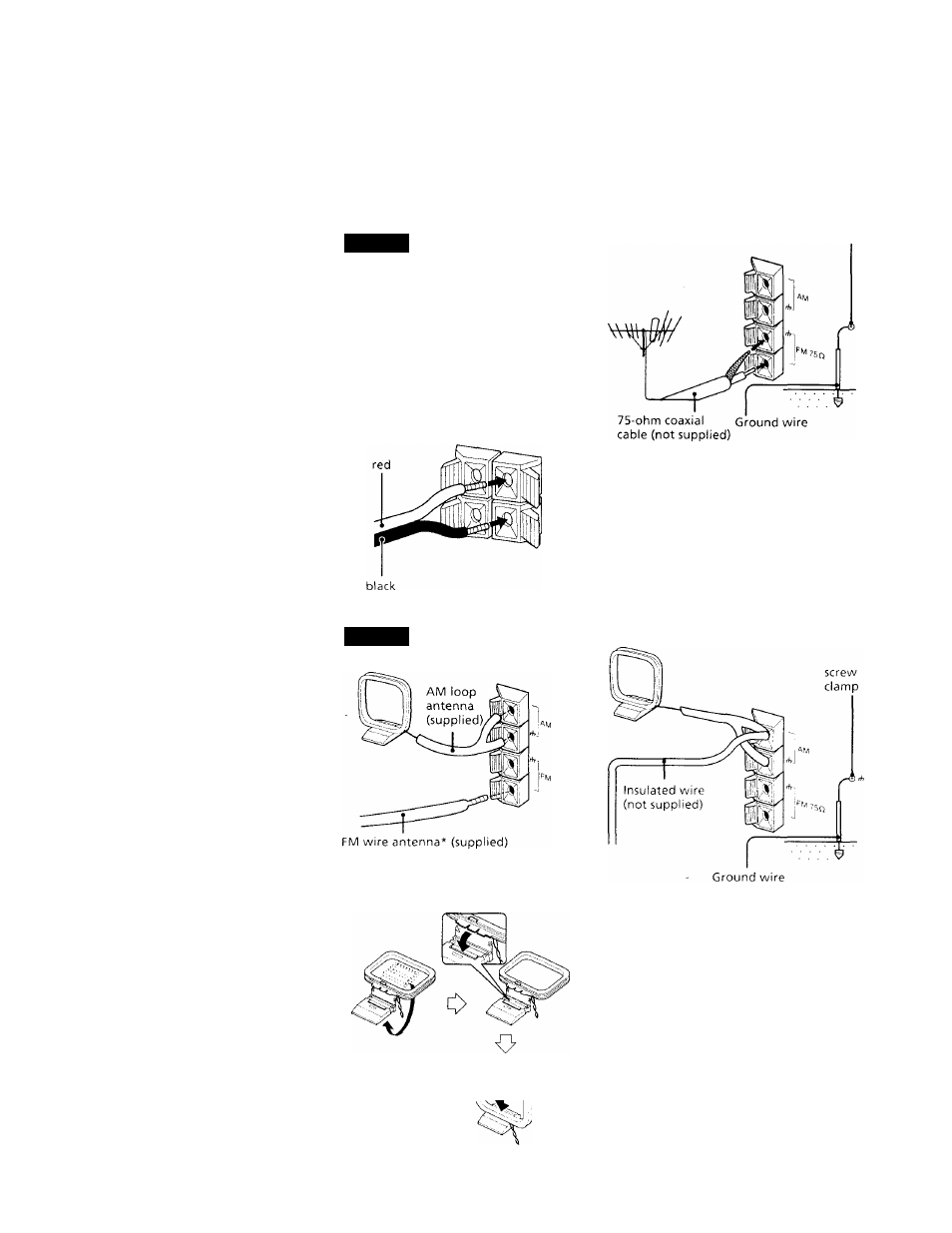

Connecting the Stereo
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see "Connecting
Optional Equipment" in Chapter 6.
Connecting the
STEP 1
Speakers
1
Twist the speaker cable coating and pull
it from the end of the cable.
2
Connect the right speaker to R
connectors and the left speaker to L
connectors with the red cord to + and
the black cord to -.
STEP 2
Antenna
Connecting the
*Note: Extend it horizontally
To set up the AM loop antenna
To improve the FM reception
Connect an outdoor FM antenna to the FM
75Q terminal, using a 75-ohm coaxial cable.
Important
Ground the external antenna from rh
terminal against lightning with the screw
clamp. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
screw
clamp
To improve the AM reception
After you connect the AM antenna, connect
a 6- to 15- meter (20- to 50- feet) insulated
wire to the AM terminal. Connect the
ih
terminal to ground.
Important
Ground the external antenna fn>m
A terminal against lightning with the screw
clamp. To prev ent a gas exjilosion, do not
connect the ground wire to a gas pipe.
4 Chapter 1: Setting Up
