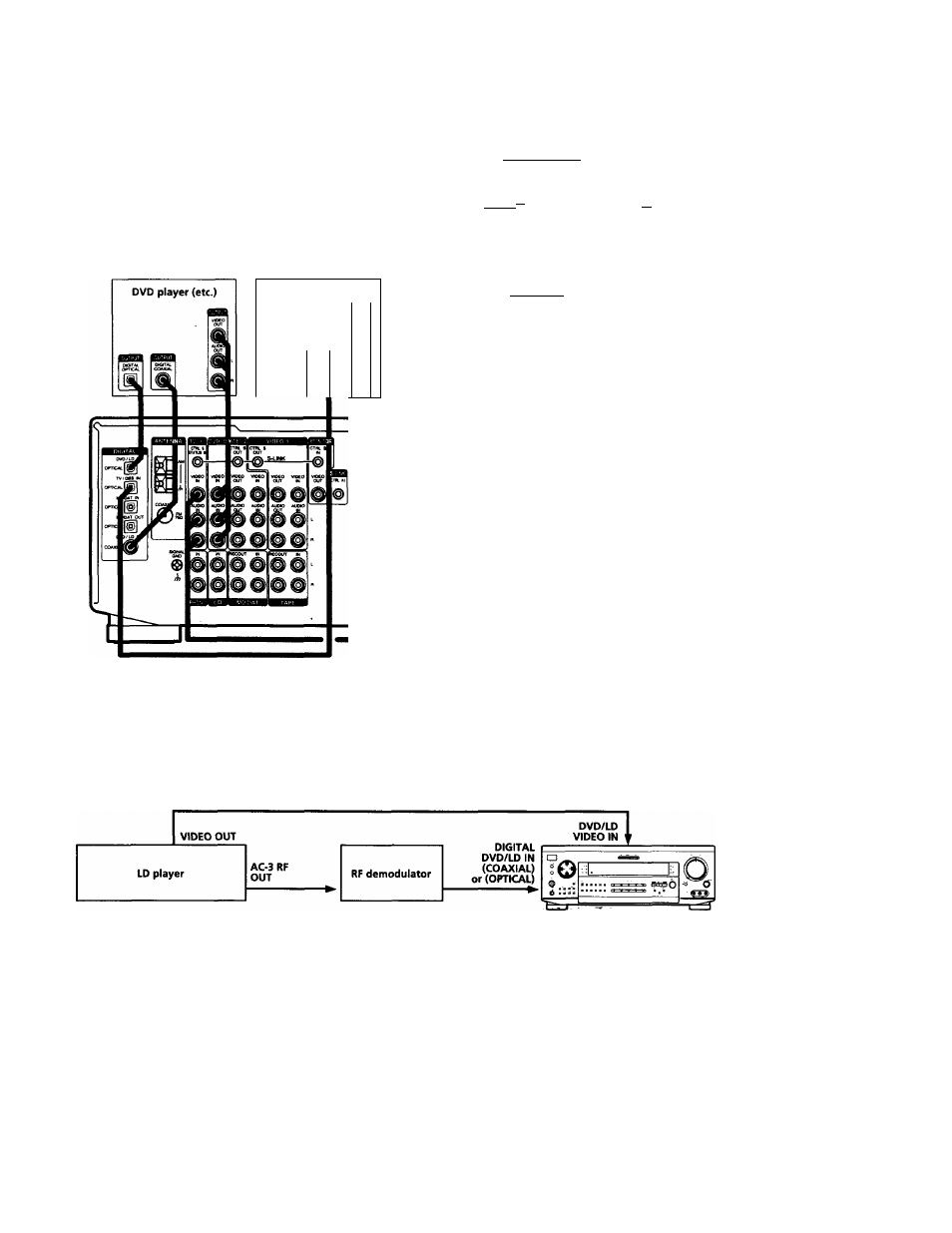

Digital Component Hookups

Connect the digital output jacks of your DVD player and
DBS tuner (etc.) to the receiver's digital input jacks to
bring the multi channel surround sound of a movie
theafer into your home. To enjoy full effecf of multi
channel surround sound, five speakers (fwo fronf
speakers, fwo rear speakers, and a center speaker) and a
subwoofer are required. You can also connecf an LD
player with an RF OUT jack via an RF demodulator, lik?^

the Sony MOD-RFl (not supplied).

Required cords

Optical digital cords (not supplied)

Black

sarTife Black

Coaxial digital cord (not supplied)

Biack

lin—

11» Black

TV or DBS tuner

1

AUOK

IM

Audio/video cords (not supplied)

When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.

Yellow (video) ,

, Yeliow (video)

White (L/audio)^^^^^

'

White (L/audio)

Red (R/audio)

Red (R/audio)

m

X

8

3*

Ifi

«

n

o

3

3

«

3

&r

Example of U> player connected via an- RF demodulator

Please note that you carmot connect an LD player's AC-3 RF OUT jack directly to this unit's digital input jacks. You must
first convert the RF signal to either an optical or coaxial digital signal. Connect the LD player to the RF demodulator, then
cOnfiect the RF demodulator's optical or coaxial digital output to this unit's OPTICAL or COAXIAL DVD/LD IN jack.
Refer to the instruction manual supplied with your RF Demodulator for details on AC-3 RF hookups.

Note

When making connections as shown above, be sure to set INPUT MODE ([^ on page 25) manually. This unit may not operate correctly if

INPUT MODE is set to "AUTO."
