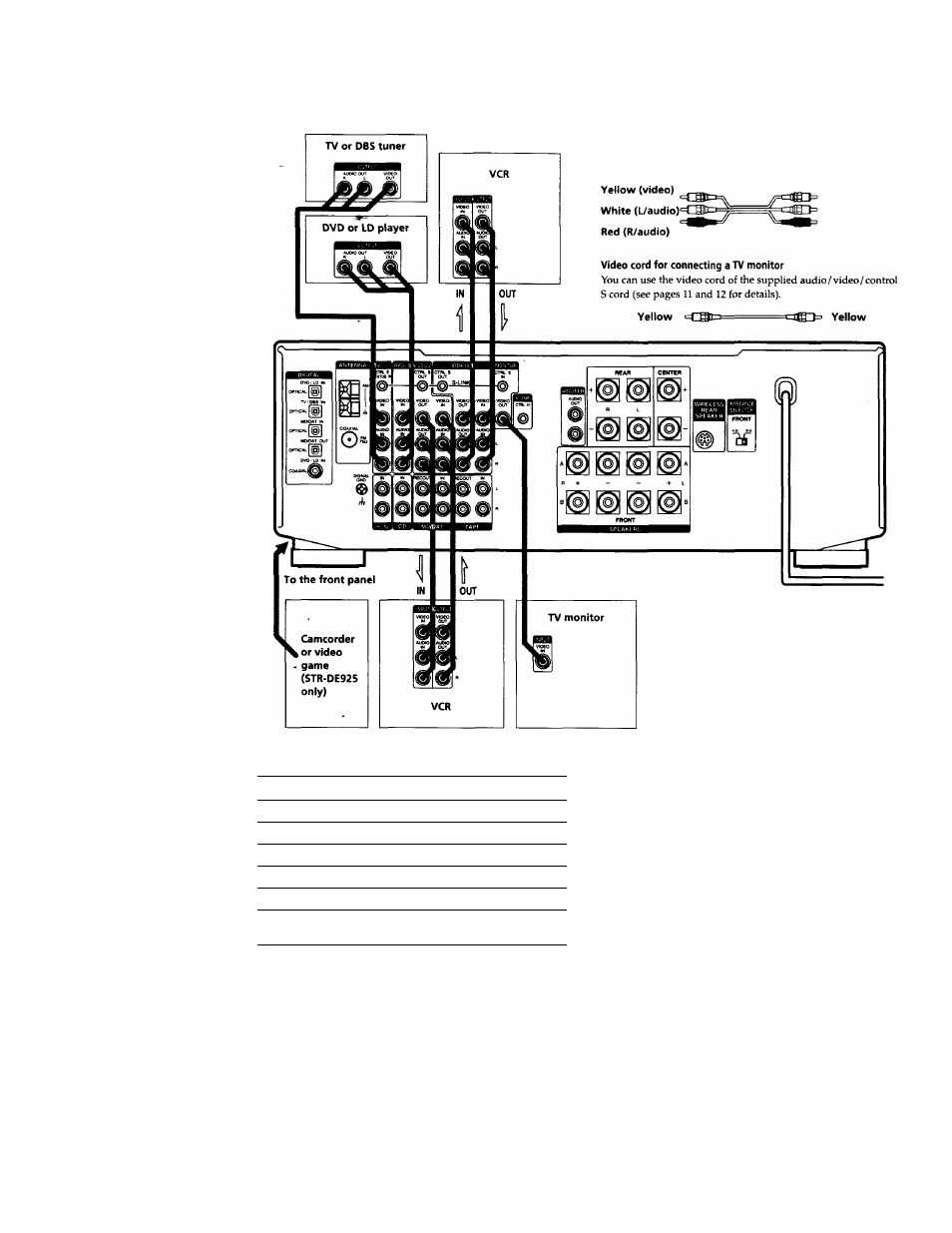

Video Component Hookups
X
o
o
3T
5'
(fi
c
(ft
n
o
3
■ 0
0
3
(ft
3
cr
Required cords
Audio/video cords (not supplied)
when connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
Yellow (video)
White (L/audio)
Red (R/audio)
Jacks for coniwcting video components
Connect a
To the
TV or DBS tuner
TV/DBS jacks
VCR
VIDEO 1 jacks
Additional VCR
VIDEO 2 jacks
DVD or LD player
LD/DVD jacks
TV monitor
MONITOR VIDEO OUT jack
Camcorder or video game
VIDEO 3 INPUT jacks on the
front panel (STR-DE925 only)
Note on video component hookups
You can coimect your TV's audio output jacks to the TV /
DBS AUDIO IN jacks on the receiver and apply sound
effects to the audio from the TV. In this case, do not
connect the TV's video output jack to the TV/DBS VIDEO
IN jack on the receiver. If you are connecting a separate
TV tuner (or DBS tuner), connect both the audio and
video output jacks to the receiver as shown above.
