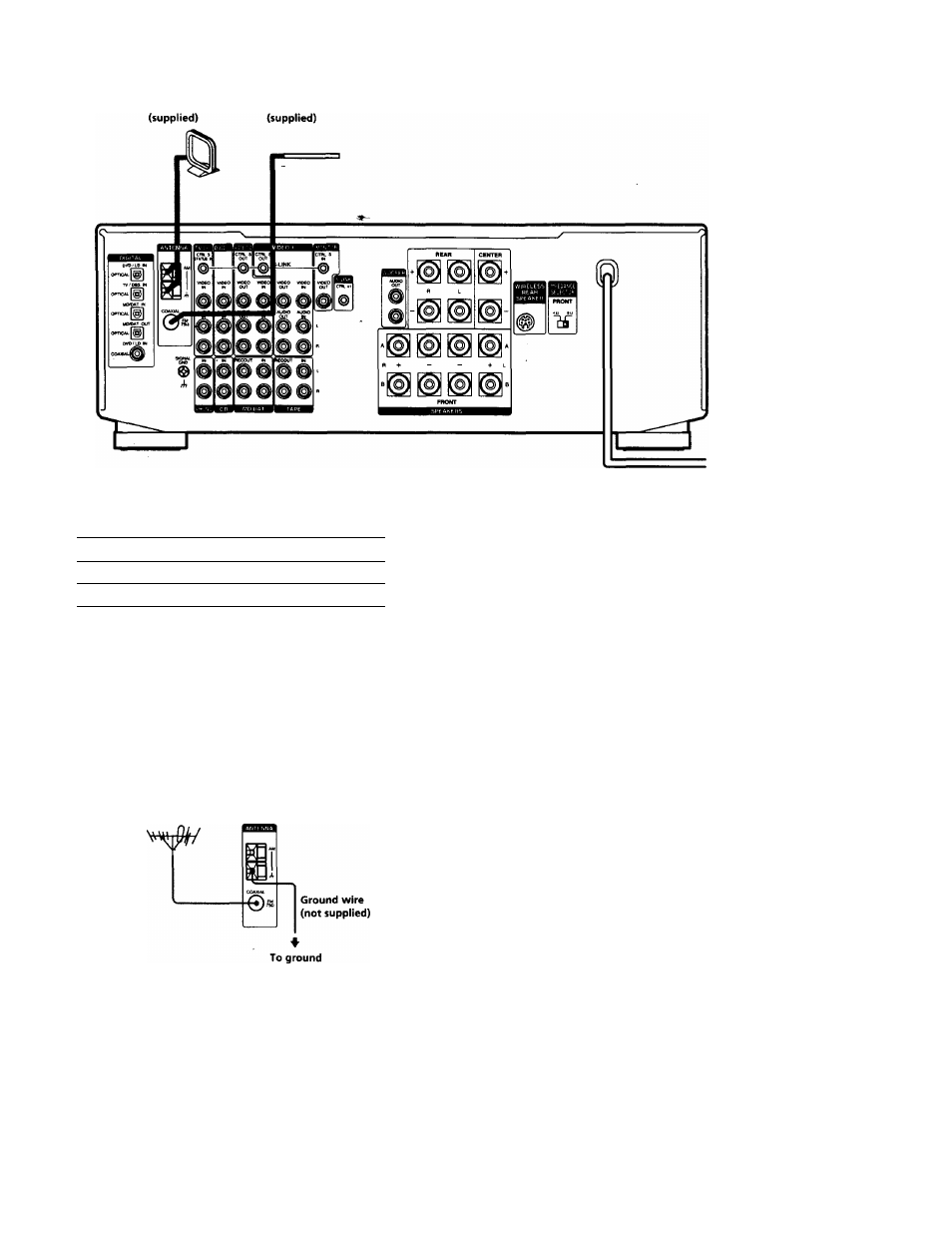

Antenna Hookups
AM loop antenna
FM wire antenna
O
O
S!
5*
ID
?
?
3
O
3
»
3
cr
Termlitab’fbr connecting the antennas
Connect the
To the
AM loop antenna
AM terminals
FM wire antenna
FM 75Í1 COAXIAL terminal
Notes on anténna liookups
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire anterma.
• After coimecting the FM wire antenna, keep it as.
horizontal as possible.
V If you have poor FM reception
Usi a 75-ohm coaxial cable (not supplied) to connect the receiver
to an outdoor FM antenna as shown below.
Important
If you connect the receiver to an outdoor anterma, ground
it against lightning. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Note
Do not use the SIGNAL GND A termirtal for grounding the
receiver.
Outdoor FM antenna
Receiver
