Audio Component Hookups
5TR-DE92S
Jacks for oHinecting audio components
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
White (L)
Red (R)
White (L)
Red (R)
I +
-
-
+ I
^ ^ ^ ^
flQHCSQUm
(©)-
¥

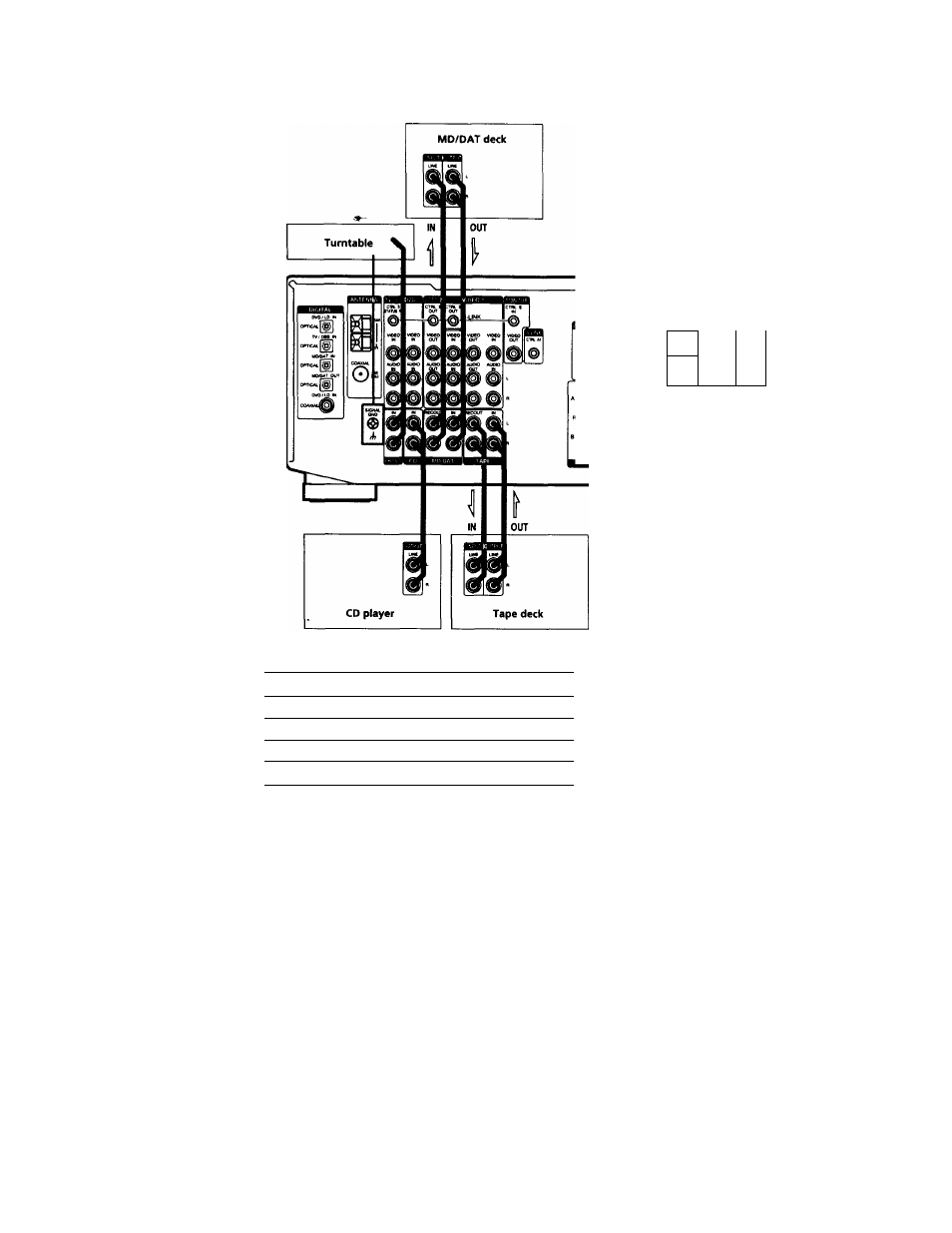

Connect a
To the
Turntable
PHONO jacks
CD player
CD jacks
Tape deck
TAPE jacks
MD deck or DAT deck
MD/DAT jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
SIGNAL GND
ih
terminal on the receiver.
