VCR Connections
You must connect the IR Blaster in order to operate your
cable box with the GUIDE Plus+ feature.

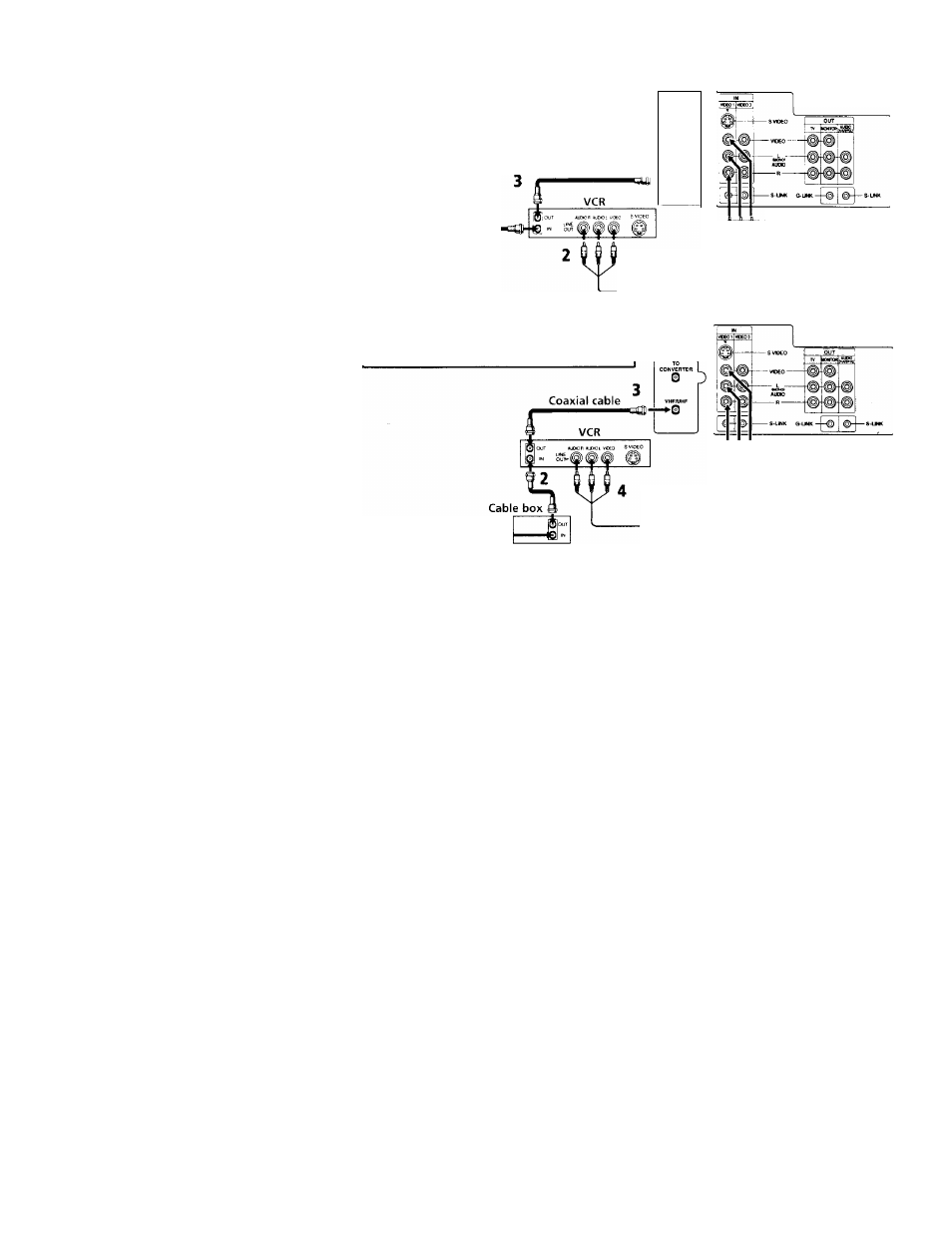

Connecting an antenna/cable TV
system with a VCR
1
Attach your cable or antenna to IN on your VCR.
2
Using A/V cormectors, connect AUDIO and VIDEO
OUT on your VCR to AUDIO and VIDEO IN on your
TV.*
3
Using a coaxial connector, connect OUT on your VCR
to VHF/UHF on yourTV.
* If you are connecting a monaural VCR, connect only the
single white audio output to the left input on your TV.
Connecting a VCR and TV with a cable
box
1
Attach your cable to IN on your cable box.**
2
Using a coaxial connector, connect OUT on your cable
box to IN on your VCR.
3
Using a coaxial connector, connect OUT on your VCR
to VHF/UHF on your TV.
4
Using A/V connectors, connect AUDIO and VIDEO
OUT on your VCR to AUDIO and VIDEO IN on your
TV.
** When using the IR Blaster and a cable box, the
cable box must be left
ON
at all times to allow
the GUIDE PIus+ feature to receive information
about upcoming television programs.
Note
• To record programs using VCR PIus+, your VCR must
be set to channel 3 or 4, preferably the channel which
does not receive a broadcast channel in your area.
For superior picture quality, use an A/V cable
instead of the VHF/UHF connection.
Coaxial cable
AUX
0
COHVCRTEn
0
VHFAJHF
1 Cable
(Rear of TV)
VMC-810S/820S
(not supplied)
L
-AUDIO-R (red)
-AUDIO-L (white)
-VIDEO (yellow)
For optimum picture quality, use S VIDEO
instead of the yellow A/V cable. S Video does
not provide sound, your audio connectors
must still be connected.
(Rear of TV)
1 Cable
' ^ai'
VMC-810S/820S
(not supplied)
t
-AUDIO-R (red)
-AUDIO-L (white)
-VIDEO (yellow)
