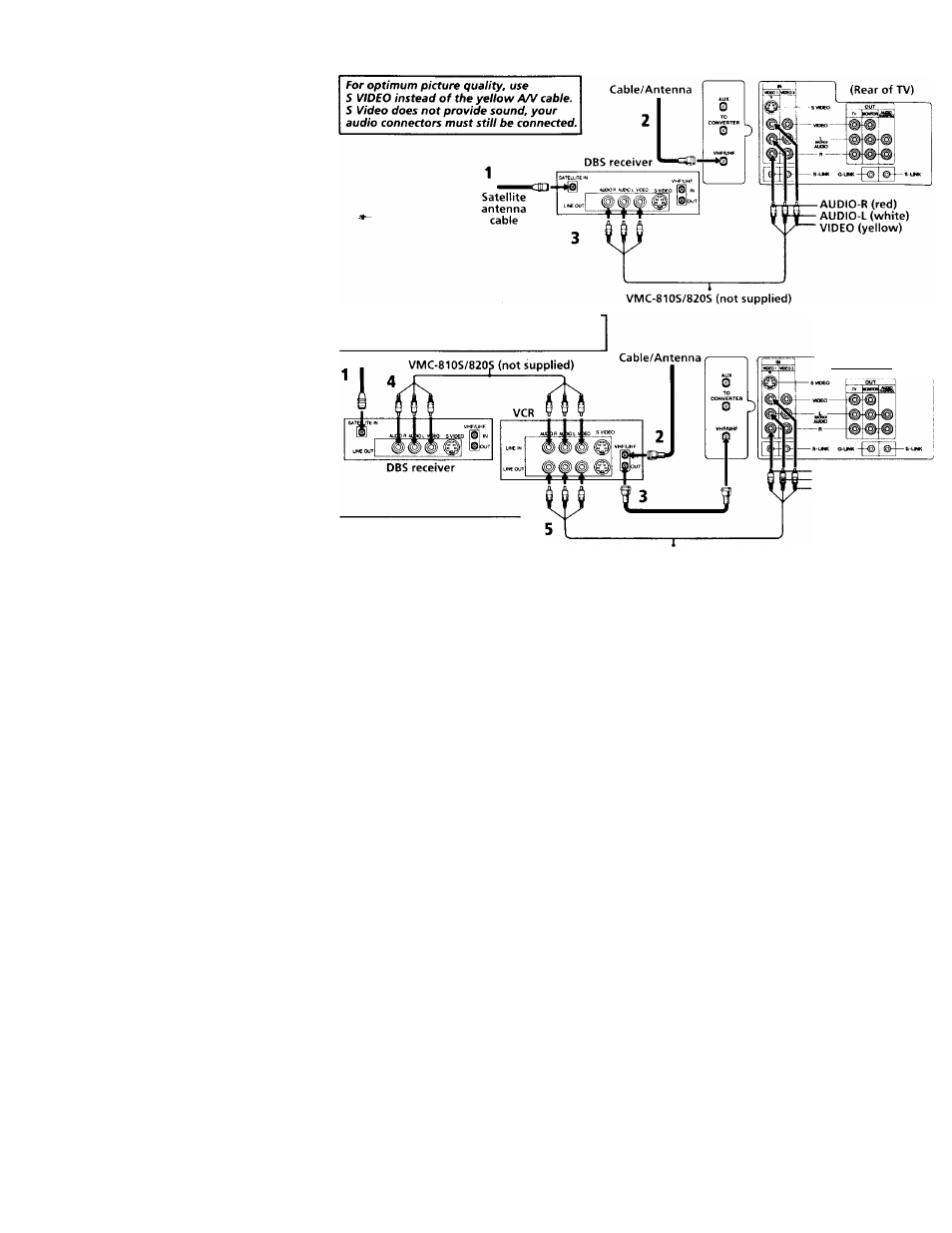

Connecting and Installing the TV (continued)
DBS Connections
Connecting a DBS (Direct Broadcast
Satellite) receiver
1
Connect the cable from your satellite antenna
to SATELLITE IN on your DBS receiver.
2
Connect your cable or antenna to VHF/UHF
on your TV.
3
Using A/V connectors, connect AUDIO and
VIDEO OUT on your DBS receiver to
AUDIO and VIDEO IN on your TV.
Connecting a DBS (Direct Broadcast
Satellite) receiver and a VCR
1
Connect the cable from your satellite antenna
to SATELLITE IN on your DBS receiver.
2
Connect your cable or anterma to VHF/UHF
IN on your VCR.
3
Using a coaxial connector, cormect VHF/UHF
OUT on your VCR to VHF/UHF on your TV.
4
Using A/V connectors, connect AUDIO and
VIDEO OUT on your DBS receiver to AUDIO
and VIDEO IN on your VCR.
5
Using A/V connectors, connect AUDIO and
VIDEO OUT on your VCR to AUDIO and
VIDEO IN on your TV.
for
superior picture quality, use an A/V cable
instead of the VHF/UHF connection.
^ (Rear of TV)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Pressing TV/VIDEO on the
remote control will allow you
to view from the DBS or VCR.
VMC-810S/820S (not supplied)
