— Quick Reference —

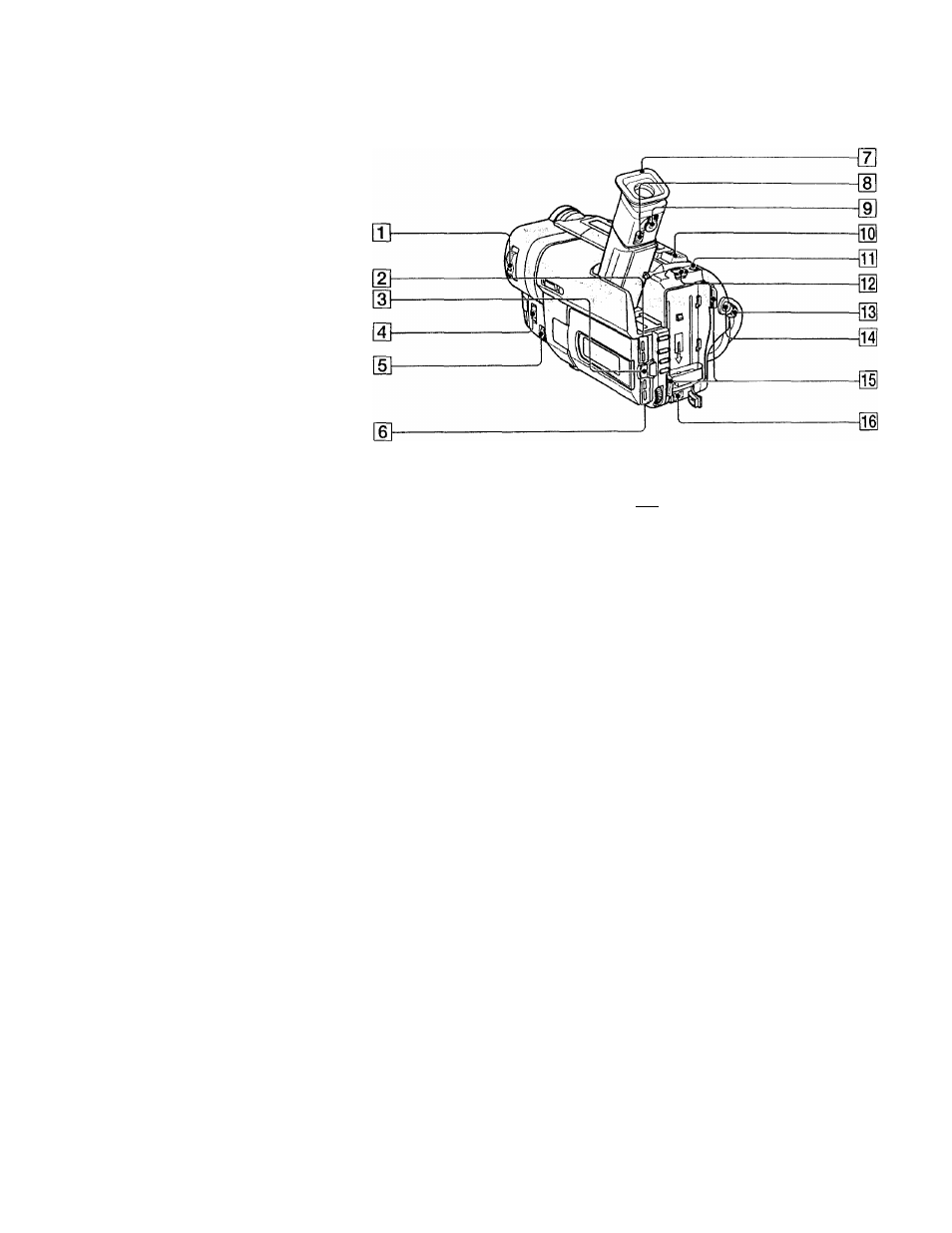

Identifying the parts and controls

Camcorder

[1] POWER switch (p. 14)

[2] LCD BRIGHT buttons (p. 15)

[1 OPEN button (p, 14)

g] FOCUS switch (p. 42)

HI NEAR/FAR dial (p. 42)

d] VOLUME buttons (p. 23)

[T] Eyecup

[8] Eyecup RELEASE knob (p. 71)

[9] Viewfinder lens adjustment lever

(p. 16)

[ÏÔ1

Power zoom lever (p. 17)

И PHOTO button (p. 28)

111 ВАТТ RELEASE lever (p, 8)

31 STANDBY switch (p. 14)

33 START/STOP button (p. 14)

311

Hook for shoulder strap

31 DC IN jack (p. 9,12)
