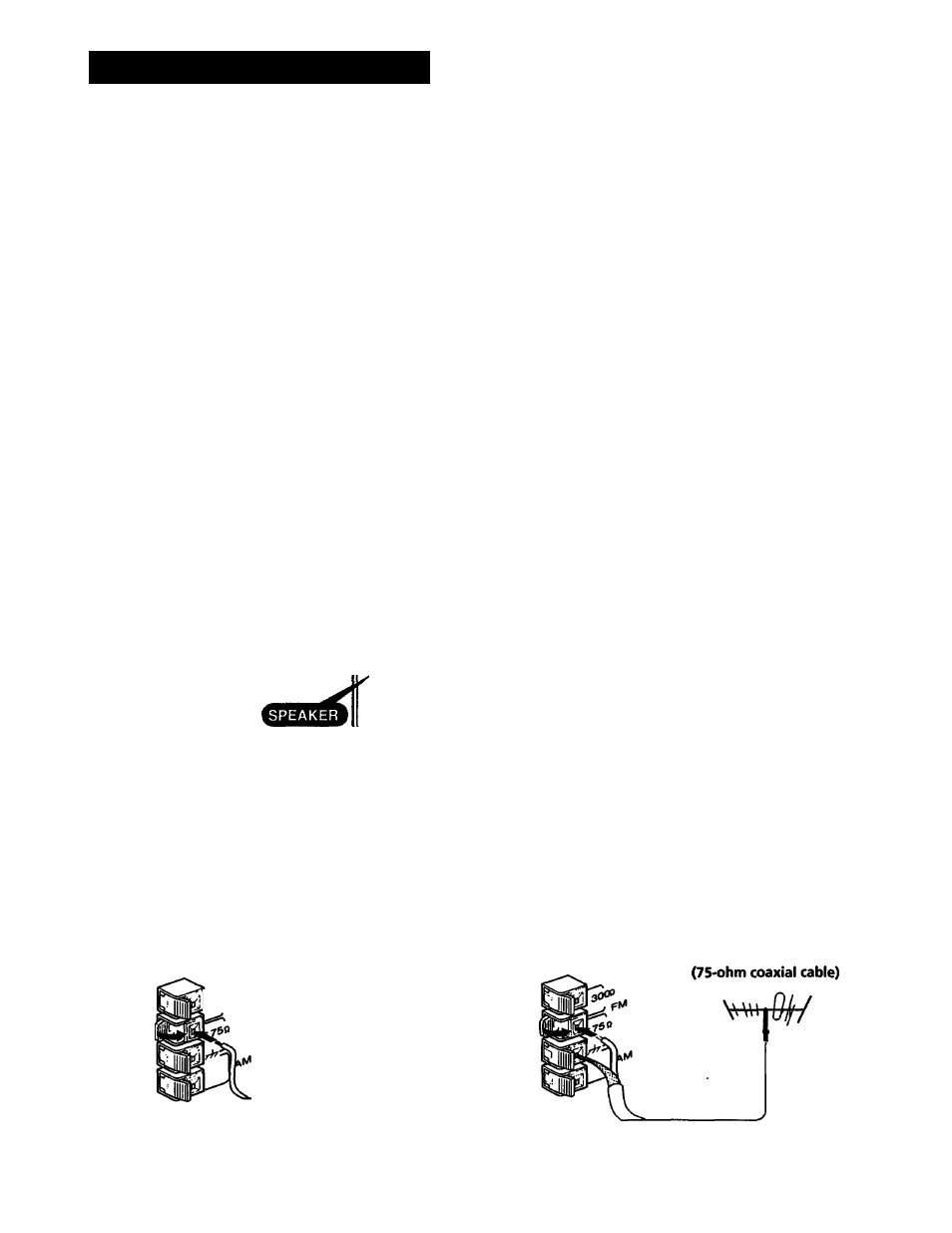

Hooking Up the System
This section describes about the antenna and speaker connections. Also, it shows about the
connection with the other audio equipments.
• Connect the AC power cord last. Make sure power is off.
• Cord plugs and jacks are color coded. Red plugs and jacks are for right channel (R) and
white ones for the left channel (L).
• The cable connectors should be fully inserted into the jacks. A loose connection may
cause hum and noise.
• Keep speaker cords, connecting cords and power cords away from the AM loop antenna
and the tuner's antenna lead-in to avoid possible noise pickup.
The numbers correspond to the following details.
Speaker system
Right Left
O
O
m
o
4
to a wall outlet
HCD-241
O
FM wire antenna (supplied)
For better FM reception
Outdoor FM antenna
