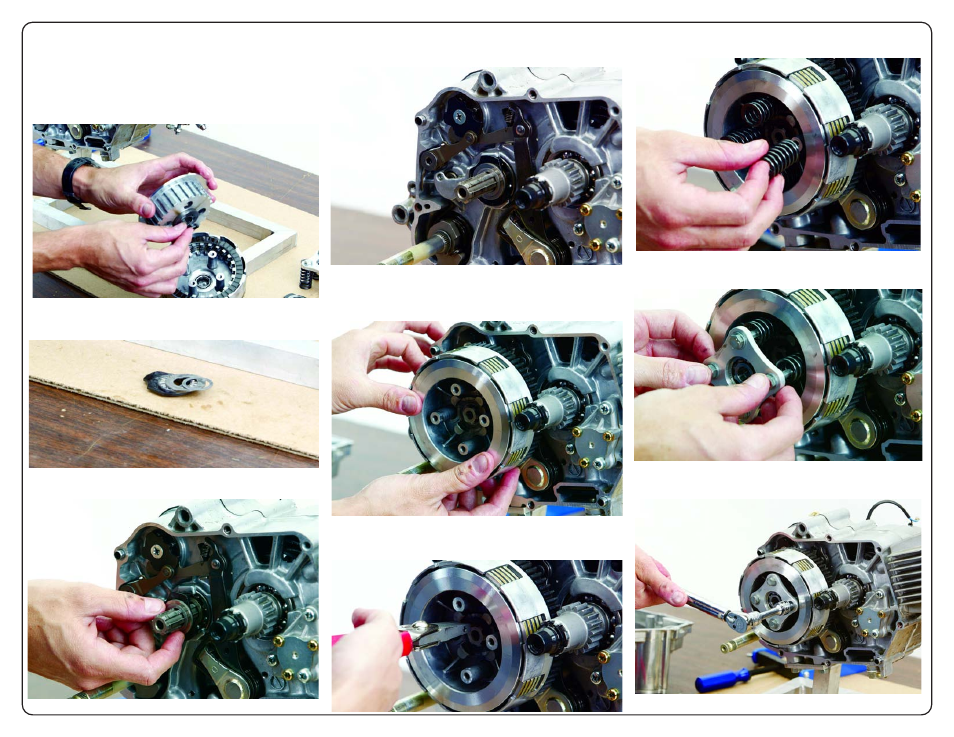

6. Remove the clutch center from the clutch assembly and install
the clutch spacer in between the basket and the clutch center.
The clutch spacer will ride on the bearing as shown.
7. Note the order in which the bearing and spacers go over the
clutch mainshaft.
8. Slide the assembly over the mainshaft as shown
9. Be sure to liberally apply an assembly lubricant or engine oil to
all parts, especially the bearing on both sides.
10. Slide the clutch assembly over the mainshaft. You may have to
align the clutch spacer to get it over the shaft because it is
“floating” in between the clutch center and the clutch basket.
11. Using spring clip pliers, install the spring clip onto the slot on
the mainshaft.
12. Install the clutch springs.
13. Install the clutch lifter plate as shown.
14. Tighten the hex bolts to 7-8 ft. lbs.
