iTBR001-217 2008-10 Yamaha Rhino - 3
Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
unplug
unplug
The ignition must be turned OFF before installation.
1 Remove both seats.
2 Remove the engine cover.

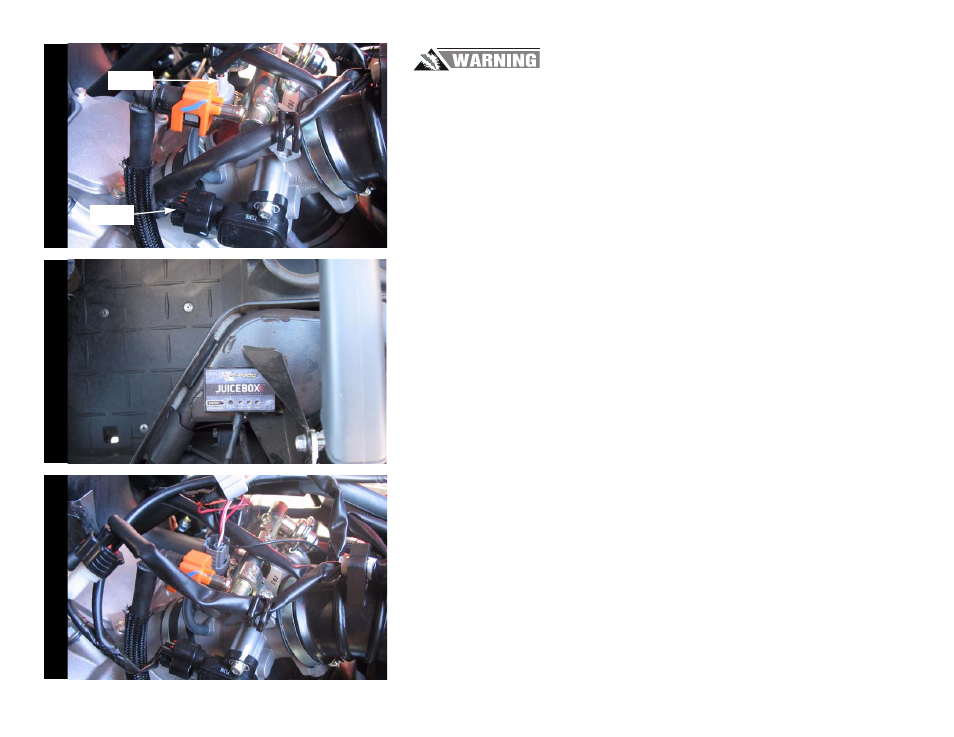

3 Unplug the stock wiring harness from the injector and the throttle position sensor
(TPS) as shown in Figure A.
4 Using the supplied velcro, secure the Juice Box Pro towards the front of the engine
compartment and just rear of the cup holders as shown in Figure B.
Make sure to clean both surfaces with the alcohol swab before attaching.
5 Route the Juice Box Pro harness over the engine and go to the throttle body.
6 Follow the stock wiring harness and secure the Juice Box Pro harness using the
stock clips.
7 Attach the Juice Box Pro connectors to the stock wiring harness, TPS, and injector as
shown in Figure C.
