Two Brothers Racing Yamaha R6S User Manual
Page 4
ITBR001-22S
2006-09 Yamaha R6S - 4
Fi
gu
re
D
Fi
gu
re
E
9

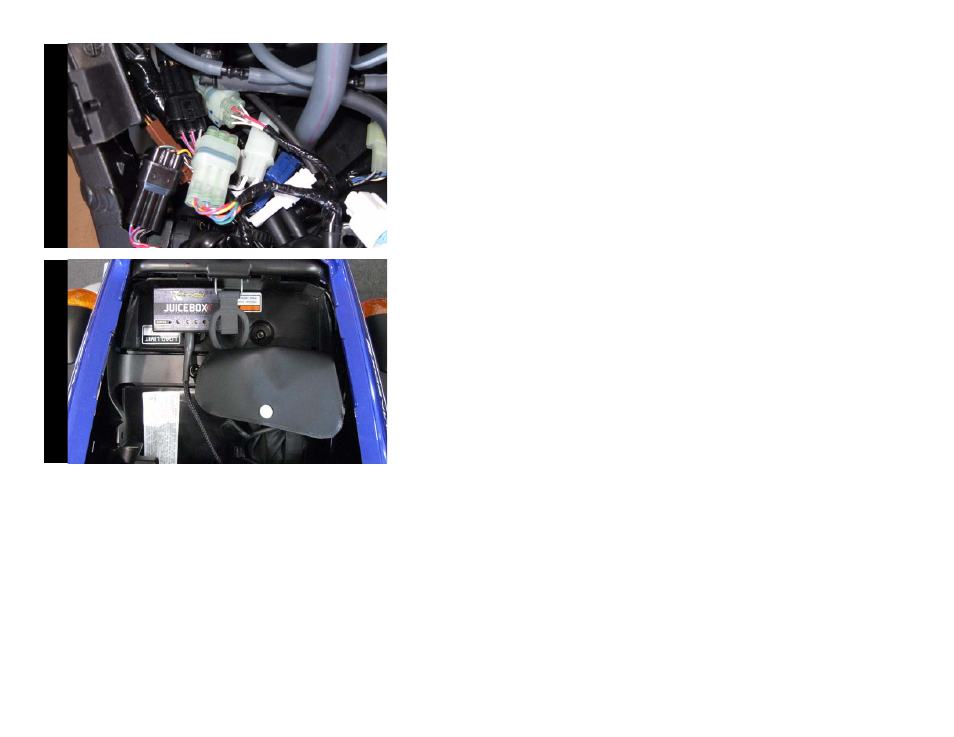

Attach the connectors from the Juice Box Pro to the stock wiring harness and the
throttle bodies as shown in Figure D.
Attach the colored connectors from the Juice Box Pro to the matching stock
connectors.
10 Using the supplied velcro, secure the Juice Box Pro in the tail section as shown in
Figure E.
Make sure to clean both surfaces with the alcohol swab before attaching.
11 Lower the fuel tank back into place and bolt it down.
12 Reinstall the passenger seat and the main seat.
