Two Brothers Racing Yamaha Grizzly 700 User Manual
Page 4
iTBR001-179
2007-10 Yamaha Grizzly 700 - 4
Fi
gu
re
D
Fi
gu
re
E
Fi
gu
re
F
unplug
unplug
5

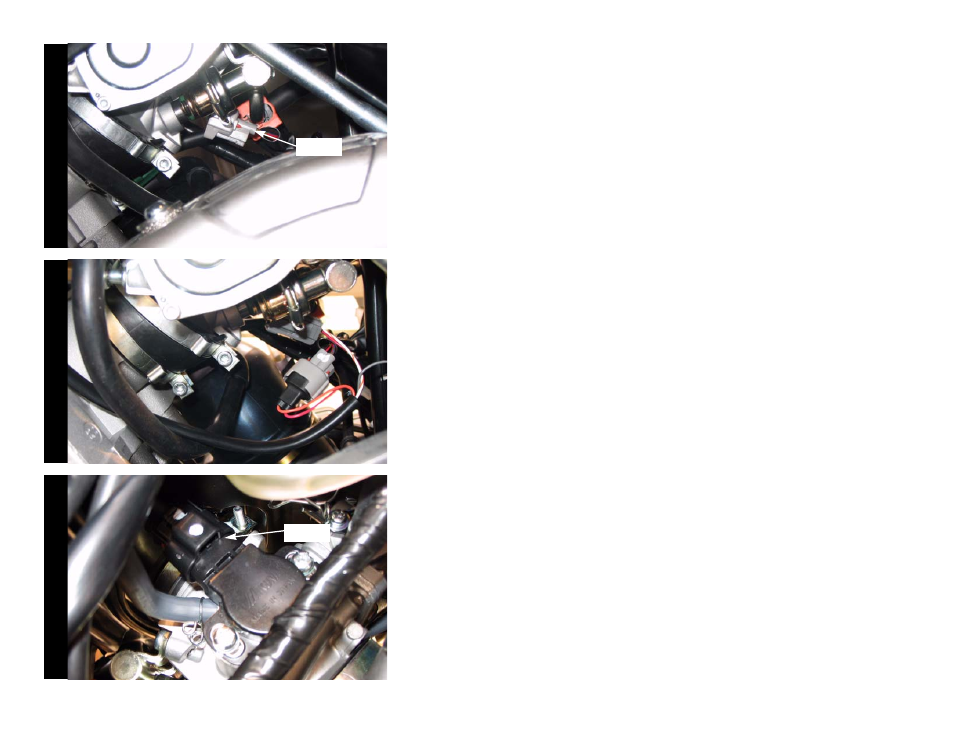

Unplug the stock wiring harness from the injector as shown in Figure D.
Figure D was taken from the left hand side of the quad.
6
Temporarily place the Juice Box Pro in the battery area.
7
Route the Juice Box Pro harness down the left hand side of the quad towards the
throttle body.
8
Attach the Juice Box Pro wiring harness to the injector and the stock wiring harness
as shown in Figure E.
9
Locate the TPS on the right hand side of the throttle body.
10 Unplug the stock wiring harness from the TPS as shown in Figure F.
