Two Brothers Racing Yamaha FZ6R User Manual
Page 3
ITBR001-257 www.twobros.com
2009-2010 Yamaha FZ6R - 3

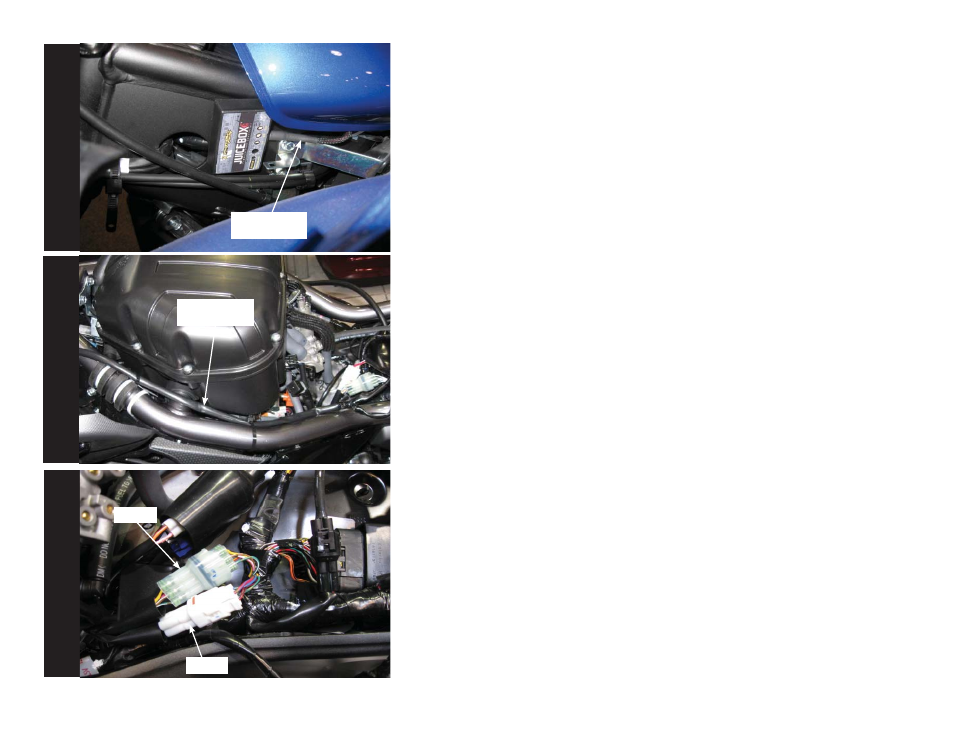

Figure A
Figure B
Figure C
4. Route the Juice Box Pro wiring harness down the left side of the air box and go
towards the throttle bodies as shown in Figure B.
5. Unplug the stock wiring harness from the throttle bodies as shown in Figure C.
One connector is a white 4-pin and the other is a clear 6-pin.
Juice Box Pro
harness
unplug
Juice Box Pro
harness
unplug
1. Remove the seat.
2. Prop the front of the fuel tank up.
Figure A is shown with the fuel tank removed which is not necessary.
3. Using the supplied velcro, secure the Juice Box Pro underneath the inner fairing
panel as shown in Figure A.
Make sure to clean both surfaces with the alcohol swab before attaching.
