ITBR001-195 2008-10 Suzuki BKing - 4
Fi
gu
re
D
Fi
gu
re
E
Fi
gu
re
F
TPS connector
wire tap
grey wire from
Juice Box Pro

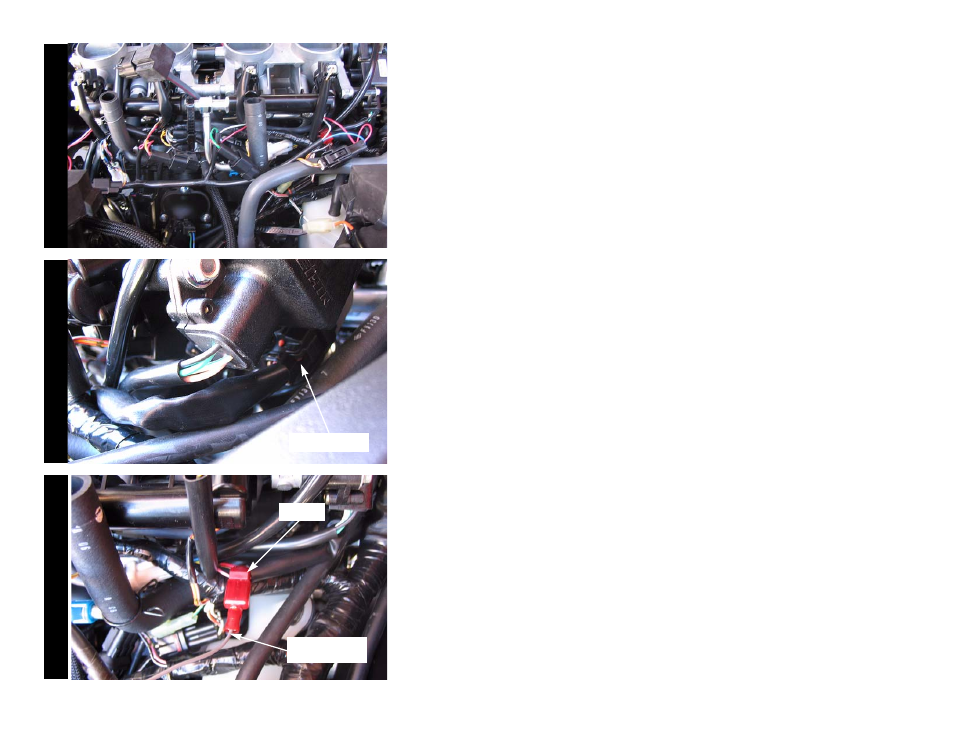

8 Attach the connectors from the Juice Box Pro to the injectors and the stock wiring
harness connectors as shown in Figure D.
• connect the orange wire to cylinder #1
• connect the yellow wire to cylinder #2
• connect the green wire to cylinder #3
• connect the blue wire to cylinder #4
9 Locate the throttle position sensor (TPS) connector.
The TPS connector is located on the right hand side of the throttle bodies as shown
in Figure E.
10 Follow the wiring harness from this connector back to where it joins the main wiring
harness.
11 Crimp the supplied wire tap to the pink/black wire of the TPS harness as shown in
Figure F.
12 Connect the grey wire from the Juice Box Pro to the wire tap as shown in Figure F.
Note:It is recommended to use dielectric grease on these connections.
