Two Brothers Racing Suzuki Bandit 1250 User Manual
Page 3
ITBR001-183 www.twobros.com
2009-2010 Suzuki Bandit 1250 - 3

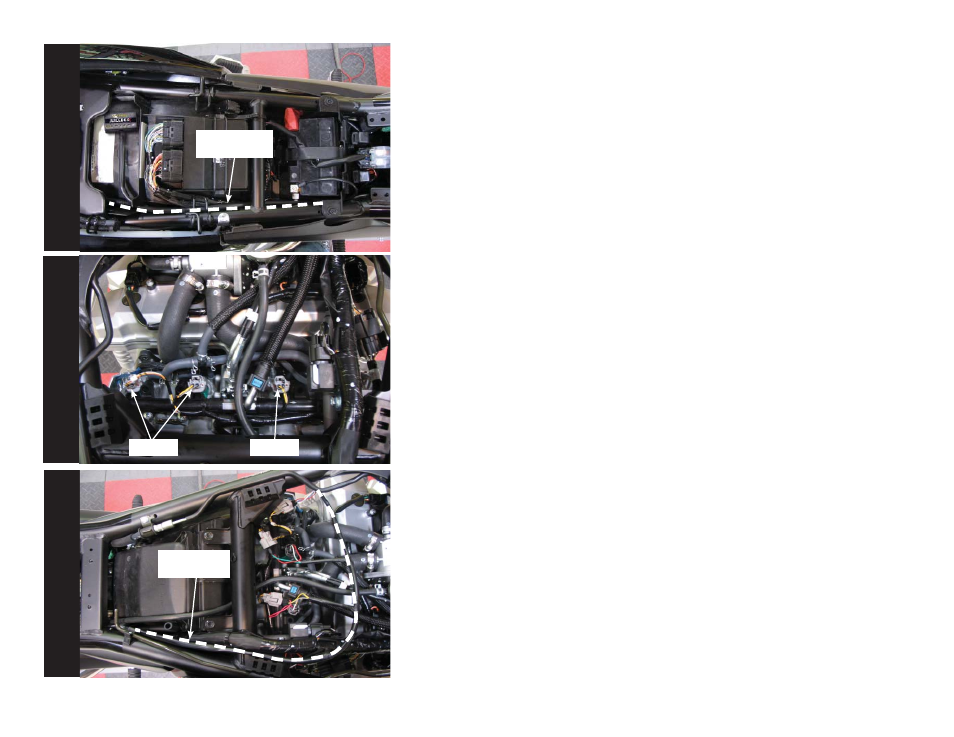

Figure A
Figure B
Figure C
5. Unplug the stock wiring harness from each of the injectors as shown in Figure B.
Injector #4 is hidden in this picture by the main wiring harness.
6. Attach the connectors from the Juice Box Pro to the stock injectors and the stock
wiring harness as shown in Figure C.
Juice Box Pro
harness
Juice Box Pro
harness
unplug
unplug
1. Remove the main seat.
2. Remove the fuel tank.
3. Lay the Juice Box Pro in the tail section.
4. Route the Juice Box Pro harness under the subframe crossover and go towards
the throttle bodies.
