Two Brothers Racing Kawasaki ZX-14R User Manual
Page 3
iTBR001-149
2006-10 Kawasaki ZX-14R - 3
Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
unplug
Juice Box Pro
harness
The ignition must be turned OFF before installation.

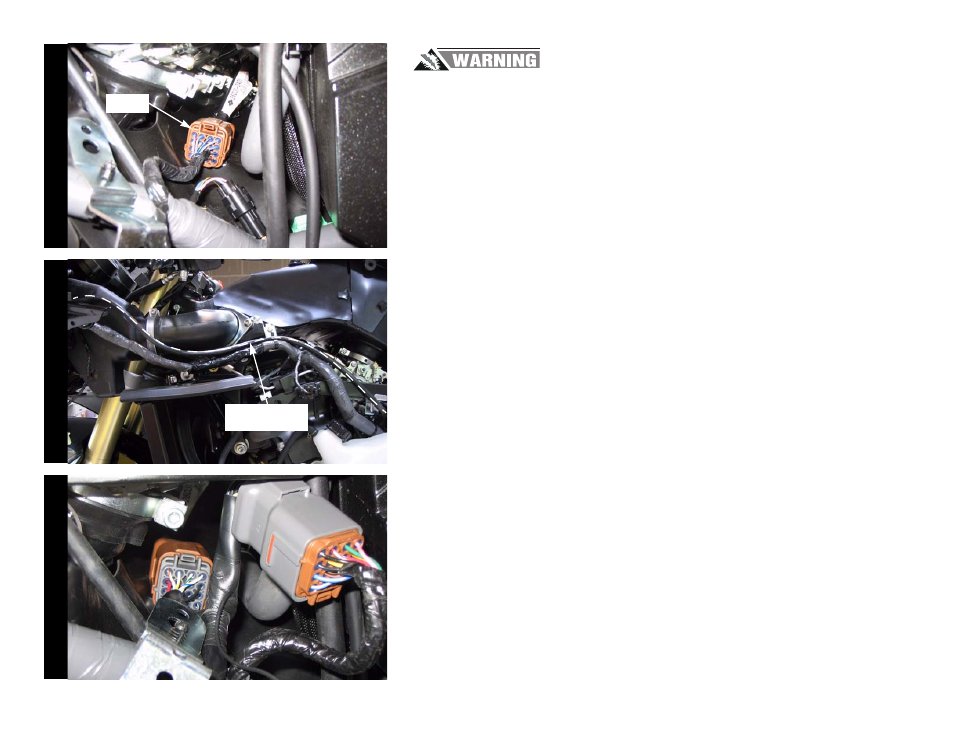

1
Remove the left hand fairing and inner fairing.
2
Unplug the brown stock wiring harness connectors from the throttle body harness
as shown in Figure A.
These connectors are located under the throttle bodies.
3
Temporarily lay the Juice Box Pro next to the gauge panel and route the Juice Box
Pro harness along the stock wiring harness to the throttle body connection as shown
in Figure B.
4
Attach the Juice Box Pro connectors to the stock wiring harness and the throttle
body harness as shown in Figure C.
