Two Brothers Racing Honda CBR1000RR - Manual (Page 3)

iTBR001-206 2008-09 Honda CBR1000RR - 3

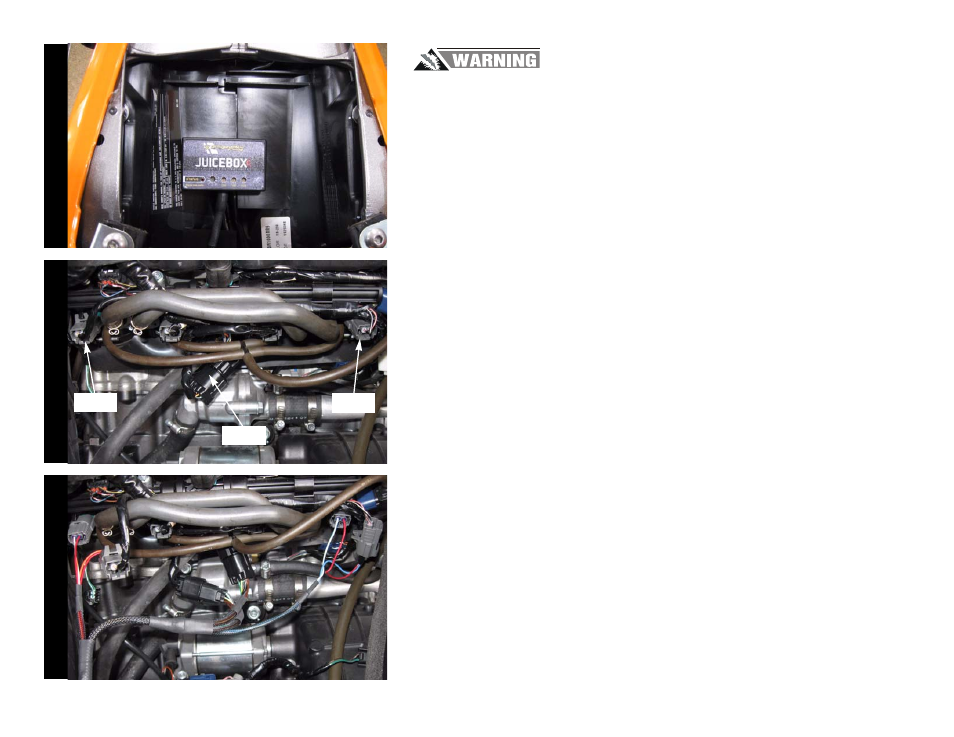

Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
unplug
unplug
unplug
The ignition must be turned OFF before installation.
1 Remove the main seat and the passenger seat.
2 Remove the fuel tank cover.
3 Lift the fuel tank up or remove.
4 Using the supplied velcro, secure the Juice Box Pro in the tail section.
Make sure to clean both surfaces with the alcohol swab before attaching.
5 Route the Juice Box Pro harness down the left side of the bike.
6 Unplug the stock wiring harness from the #1 and #4 lower injectors as shown in
Figure B.
The lower injectors are located on the throttle bodies.
7 Unplug the sub-connector from the lower throttle bodies as shown in Figure B.
8 Attach the Juice Box Pro connectors to the stock wiring harness and the throttle
body as shown in Figure C.
