iTBR001-175 2007-10 Honda CBR600RR - 5
Figur
e
G
Figur
e
H

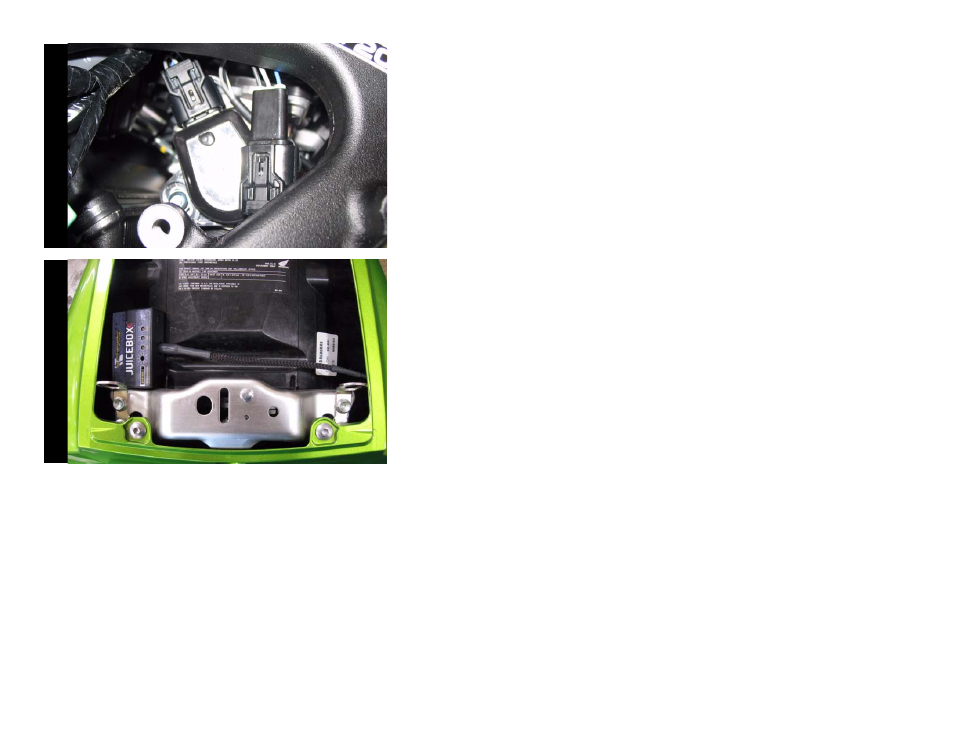

12 Attach the black connectors from the Juice Box Pro to the stock TPS and wiring
harness as shown in Figure G.
13 Using the supplied velcro, secure the Juice Box Pro in the tail section.
Make sure to clean both surfaces with the alcohol swab before attaching.
14 Bolt the fuel tank back into position.
15 Reinstall the bodywork.
