Two Brothers Racing Honda CBR600 - Manual (Page 3)

iTBR001-175 2007-10 Honda CBR600RR - 3

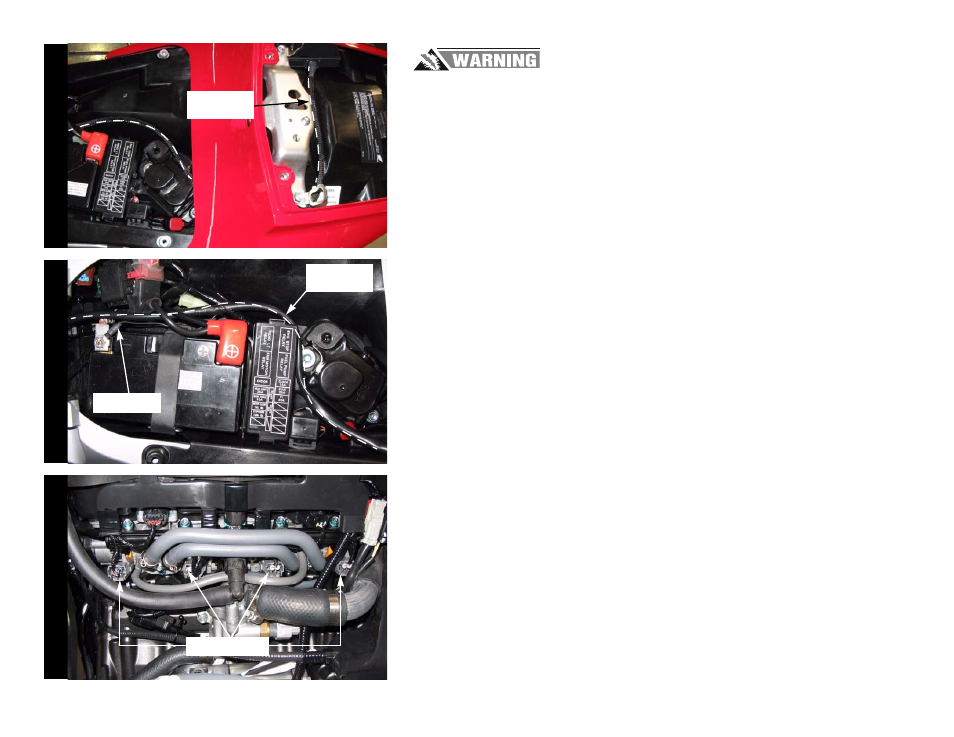

Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
Juice Box Pro
harness
ground wire
Juice Box Pro
harness
unplug harness
The ignition must be turned OFF before installation.
1 Remove the main seat and the passenger seat.
2 Remove the fuel tank cover.
3 Remove the left hand fairing.
4 Prop the fuel tank up.
5 Lay the Juice Box Pro in the tail section temporarily and route the harness
underneath the tail section as shown in Figure A.
Removing the four bolts holding the tail section in place will make routing the
harness easier.
6 Route the Juice Box Pro harness towards the throttle bodies as shown in Figure B.
7 Attach the ground wire from the Juice Box Pro to the negative side of the battery.
8 Unplug the stock wiring harness from each injector as shown in Figure C.
Note:This bike has lower and upper injectors. Make sure you connect the Juice Box
Pro to the lower set of injectors on the throttle bodies and not the set on top of the
air box.
