Juice Box Pro
connector
Juice Box Pro
connector

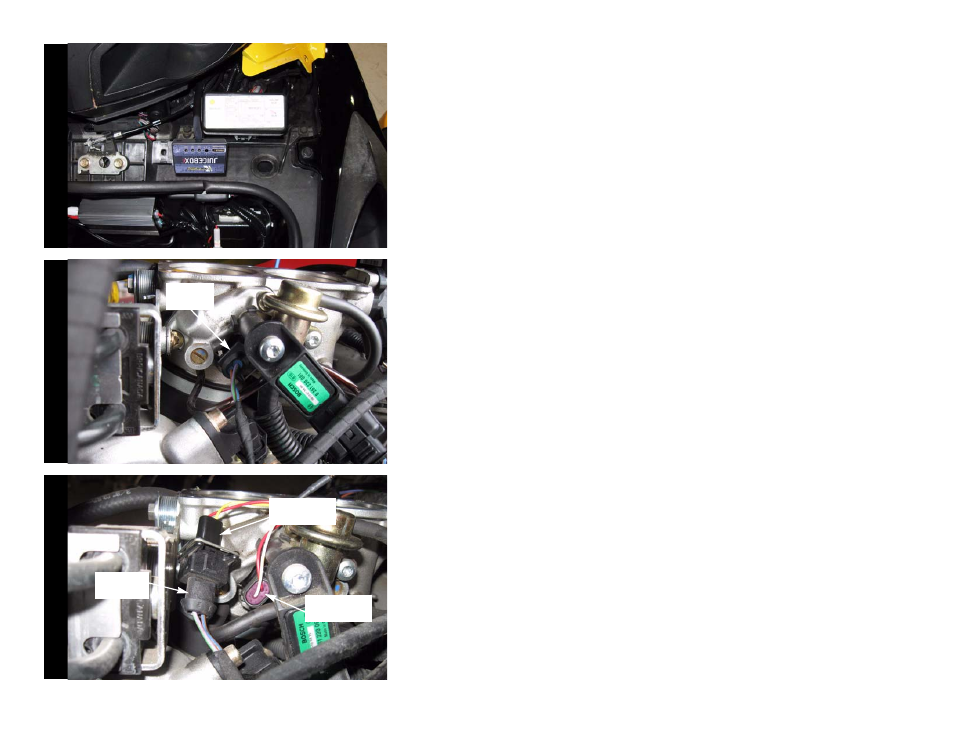

6 Using the supplied velcro, secure the Juice Box Pro in place next to the fuse box as
shown in Figure D.
The fuse box is located under the front storage hatch.
Make sure to clean both surfaces with the alcohol swab before attaching.
7 Route the Juice Box Pro harness down the left side of the vehicle and go towards the
throttle bodies.
The harness will be secured in place in a later step.
8 Unplug the stock wiring harness from the rear injector on the left side of the throttle
bodies as shown in Figure E.
To release the connector, squeeze the spring clip into the connector.
9 Attach the Juice Box Pro connectors with yellow wires to the rear injector and the
stock wiring harness as shown in Figure F.
