ITBR001-296 www.twobros.com 2011 Can-Am Commander 1000 - 5

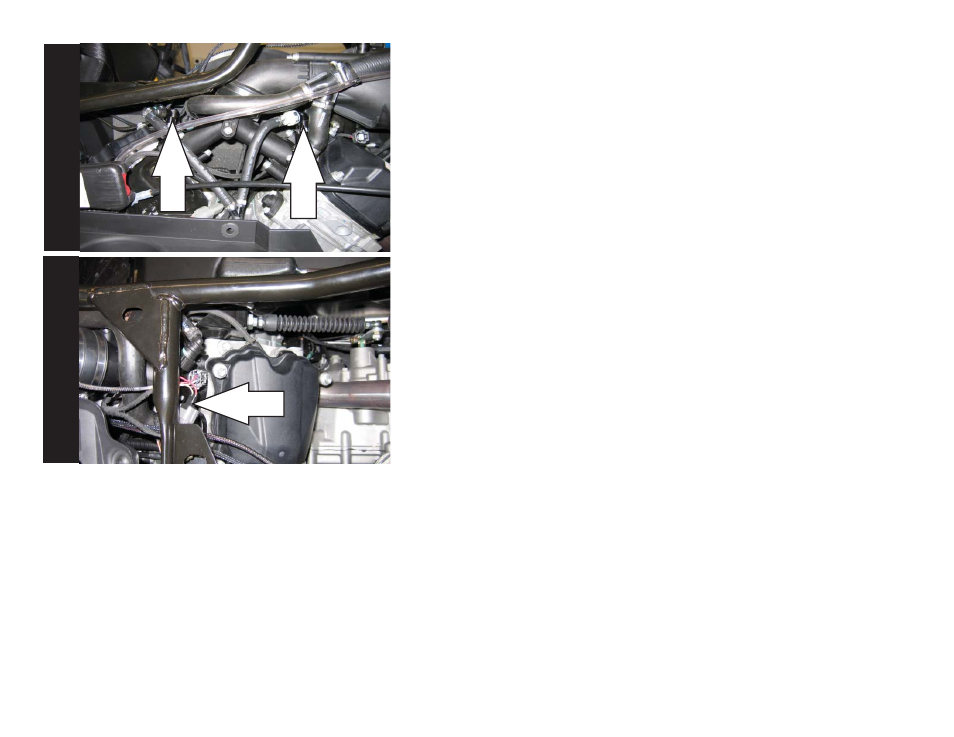

12. Locate the fuel injectors above the engine as shown in Figure G.
Figure G
Figure H
13. Attach the connectors from the Juice Box Pro to the stock wiring harness and the
fuel injectors.
• orange wires connect to the front cylinder
• yellow wires connect to the rear cylinder
14. Replace the passenger side engine compartment cover panels, ignition switch
board, glove compartment, and center console.
