ITBR001-296 www.twobros.com 2011 Can-Am Commander 1000 - 3

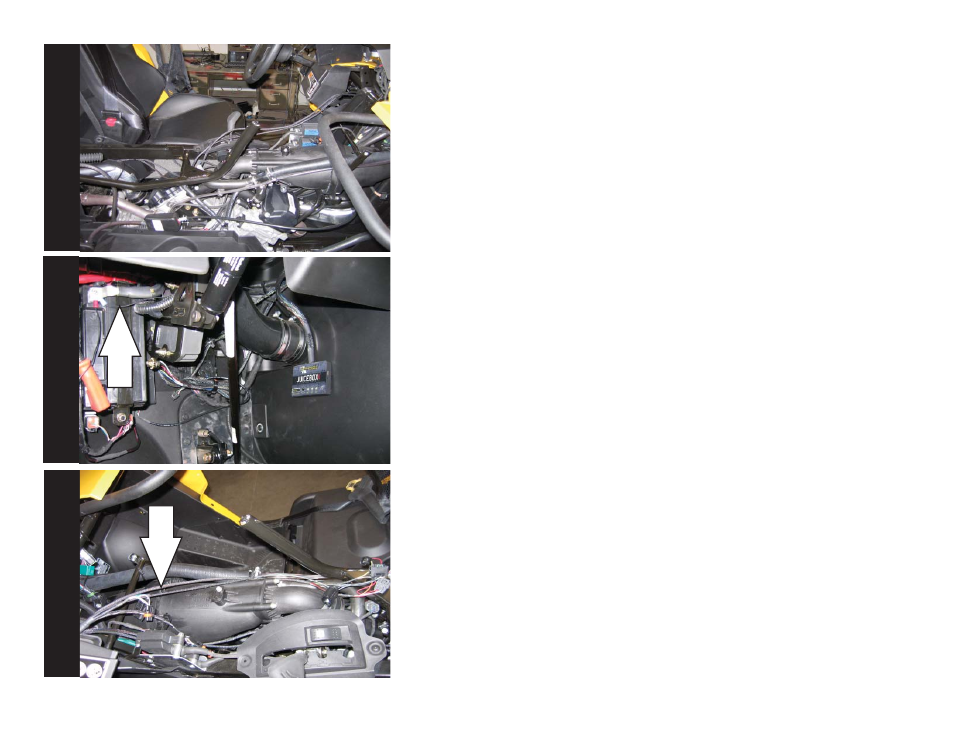

Figure A
Figure B
3. Using the supplied velcro, secure the Juice Box Pro to the driver side engine
cover as shown in Figure B.
Make sure to clean both surfaces with the alcohol swab before attaching.
4. Attach the ground wire from the Juice Box Pro to the negative side of the battery
as shown in Figure B.
5. Route the Juice Box Pro harness over the engine cover and route the harness
along the intake plenum as shown in Figure C.
Figure C
ground wire
harness
1. Remove the center console, glove compartment, ignition switch board, and both
passenger side engine compartment cover panels.
2. The motor compartment will be exposed as shown in Figure A.
