ITBR001-296 www.twobros.com 2011 Can-Am Commander 1000 - 4

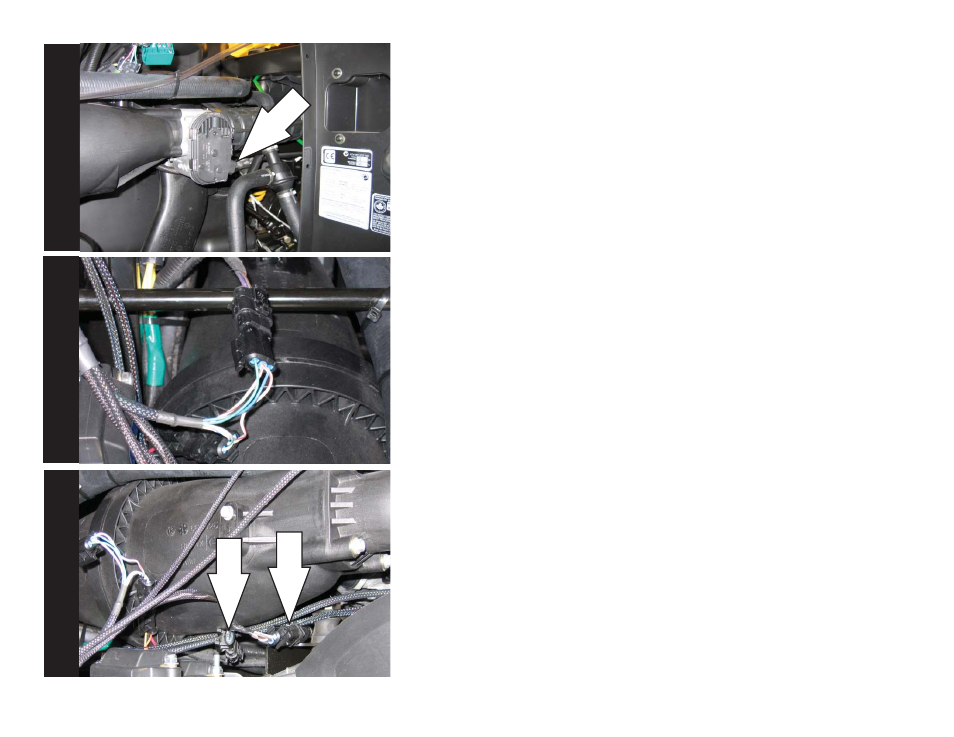

6. Locate the fl y by wire throttle servo and unplug the six-pin connector.
The fl y by wire throttle servo is located on the passenger side of the intake
plenum.
7. Attach the connectors from the Juice Box Pro harness in line with stock wiring
harness and the servo unit.
Figure D
Figure E
8. Unplug the three-pin coil connector.
This connector is located on the coil under the center console on the left side.
9. Attach the connectors from the Juice Box Pro harness to the stock wiring harness
and the coil connector.
10. Locate the two-pin crank connector.
This connector is located beneath the intake plenum on the drivers side of the
engine.
11. Attach the connectors from the Juice Box Pro harness to the stock wiring harness
and the crank connector.
Figure F
