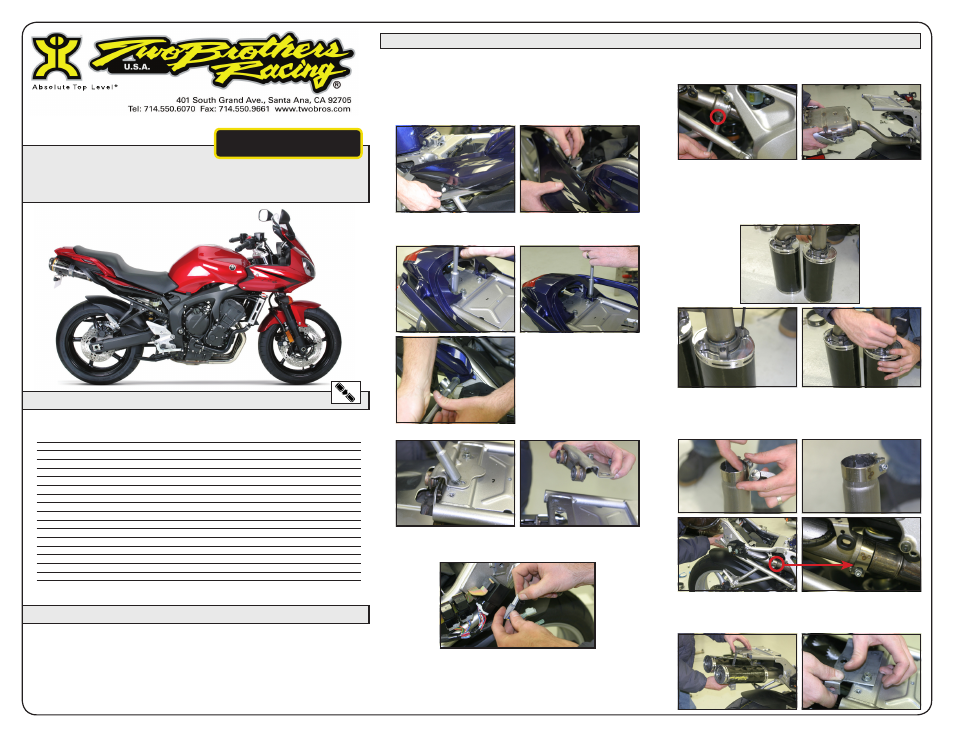

Two Brothers Racing Yamaha FZ6 - Manual

6. Loosen OEM clamp securing exhaust tube to header
and carefully remove OEM muffler assembly.
7. Align muffler canisters with V.A.L.E.™ assembly,
making sure the Two Brothers name badges are
facing outward. Use the supplied 6 x 14mm socket
head cap screws and split lock washers and loosely
attach each muffler canister to its X-Lite™ ring.
8. Apply a bead of supplied high-temp sealant around the
inside of the new slip tube. Slip the canister/slip tube
(V.A.L.E.™) assembly into place and loosely tighten the
supplied barrel band clamp.
9. Slip new license plate bracket into place between the
two canisters and secure to seat mounting plate using
OEM bolts.
V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Parts List
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified
motorcycle technician. If you have any doubts as to your ability to install this
performance part, please consult with your local motorcycle dealer. Read all
instructions first before starting installation. Make sure the motorcycle and
exhaust system are completely cool before starting the installation. Also,
make sure the bike is secure on a centerstand or ideally a service lift during
installation. Be sure to save all stock components for possible use later.
Installation Instructions
1. Make sure the bike is completely cool before
starting the installation. Make sure the bike is
secure on a centerstand or ideally a service lift.
2. Remove seat. Remove bolts from lower plastic
cowling below seat.
3. Remove bolts securing rear cowling. Remove rear
cowling from bike
4. Remove bolts securing the tailpiece bracket
5. Unhook modular connectors on the left side of the
bike leading to the tail light assembly.
Qty. Description Part Number
1 Left Side V.A.L.E.™ M-2 Muffler Canister Varies
1 Right Side V.A.L.E.™ M-2 Muffler Canister Varies
2 Canister Clamp with Rubber Liner Varies
1 Slip-On Tube 005-11704S
1 HARDWARE KIT 005-117-3
2 X-Ring 005-7-2-3KIT
1 Barrel Band Clamp 005-27-61MSH
3 8x20mm Flange Bolts 005-FB820
3 8mm Nuts 005-FN8
1 Large Washer 005-W0516
1 License Plate Bracket 005-11704B
2 License Plate Lamps 005-8504LT2
2 Replacement Turn Signals 005-88T2
6 Butt Splice Wire Connectors 005-BS1614
1 Permatex Hi-Temp Sealant 031-P22072
1 TBR Sticker Kit 015-10212
2004-09 Yamaha
FZ6
V.A.L.E.™ Slip-On Exhaust System with Dual M-2 Exhaust Canisters
Part # 005-1170406V, 005-1170407V, 005-1170408V
