V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Installation Instructions
Installation Instructions
2009-10 Polaris
RangeR RZRS 800
V.A.L.E.™ Triple Full Exhaust System with M-7 Aluminum Canister
Part # 005-2750106TV

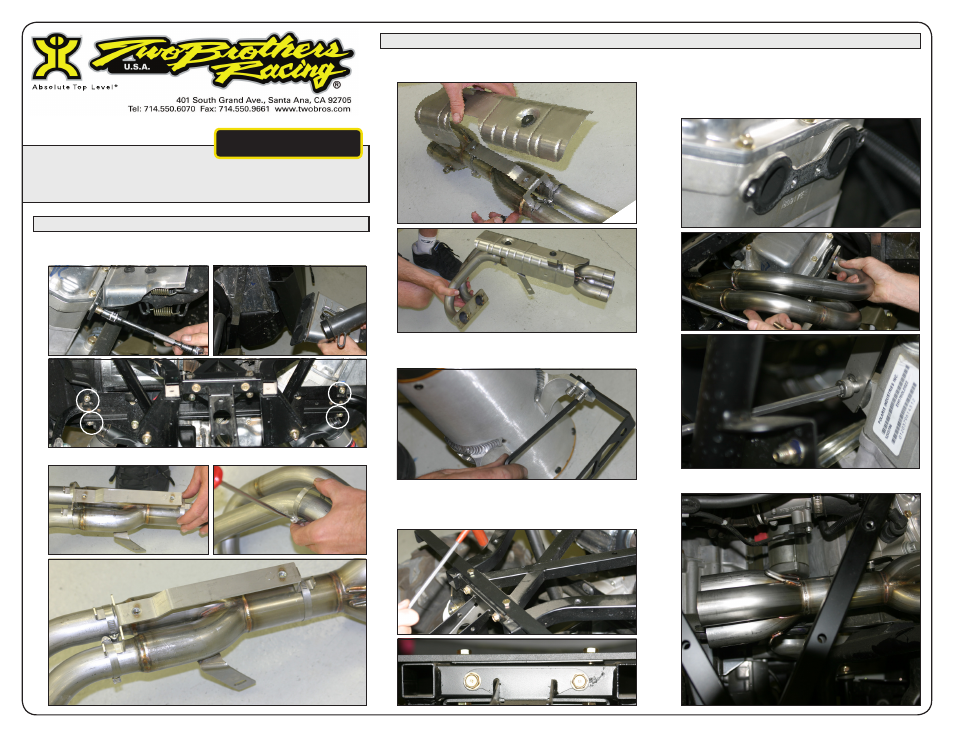

4. Remove OEM header assembly, you may need to remove stabilizer bracket
to access header mounting bolts.
5. Install heat shield bracket to TBR header using the supplied hose clamps.
6. Remove OEM heat shield and turn 180 0 . Re-install on
TBR headerusing the 2 OEM bolts and washers.
7. Attach the hanger bracket to the TBR center muffler
using the 4 (four) 6x14mm socket head cap screws and
split lock washers provided.
8. Remove rear frame bolts/nuts to install muffler stabilizer
mount on top of frame rail and center muffler with
mounting bracket attached under frame rail. The stock
hardware is re-used.
9. Install TBR header to cylinder head using the supplied
header gasket (if the stock gasket is un-damanged you
may use that instead) and OEM mounting bolts at header
flange. Use supplied 8x20mm socket head cap screw to
secure header assembly to cylinder head on side mount.
10. Attach TBR triple collector with clips as shown in photo.
