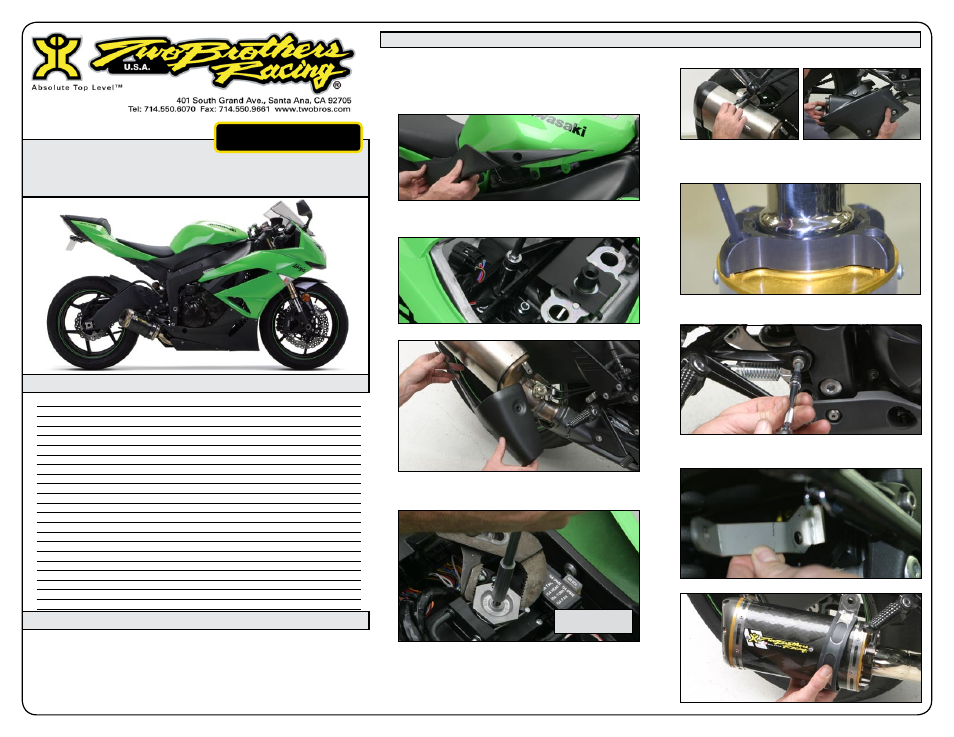

Two Brothers Racing Kawasaki ZX-6R - Manual

Remove OEM muffler assembly.
Attach TBR muffler to slip-on tube using 2 piece X-Ring
and the 4 6x14mm S.H.C.S. and lock washers provided.
Leave loose for now.
Remove lower rear set mounting bolt and replace with
supplied 8x40mm socket head cap screw.
Attach the supplied mounting bracket to the inside of
frame and secure in place with the supplied 8mm flange
nut. Bracket should be installed as shown in picture.
Install rubber lined muffler clamp over canister.
7.
8.
9.
10.
11.
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified motorcycle
technician. If you have any doubts as to your ability to install this performance
part, please consult with your local motorcycle dealer. Read all instructions first
before starting installation. Make sure the motorcycle and exhaust system are
completely cool before starting the installation. Also, make sure the bike is secure
on a centerstand or ideally a service lift during installation. Be sure to save all stock
components for possible use later.
Installation Instructions
Make sure the bike is completely cool before starting the
installation. Make sure the bike is secure on a centerstand
or ideally a service lift.
Remove side covers and seat.
Remove rear passenger seat.
Remove OEM rear fender. You will reuse the fender bolts.
Remove rear exhaust cover.
Remove exhaust valve cables from servo under seat. Use
a wrench to hold server wheel in place or internal gears
may break.
1.
2.
3.
4.
5.
6.
Qty. Description Part Number
1 Muffler Canister Varies
1 Muffler Clamp Varies
1 Slip-on Tube 005-24104S
1 HARDWARE KIT 005-241-3
2 X-Ring (half) 005-7-2-3
1 Fender Bracket 005-19904B
2 Lighted License Plate Bolt 005-8504LTZ
1 Turn Signals (set of 2) 005-88T2
6 Butt Splice Connectors 005-BS1614
1 Zip Tie 005-ZT458B
1 Zip Tie Tab 005-ZTM4
1 Muffler Bracket 005-241-B
1 8x40mm Socket Head Cap Screw 005-SH840
4 6x14mm Socket Head Cap Screw 005-SH614
4 6mm Split Lock Washer 005-WL6
4 6mm Flange Nut 005-FN6
1 8x16mm Flange Bolt 005-FB816
2 8mm Flange Nut 005-FN8
1 T20 Torx Screw Hex Key 005-9-15820
1 5mm Long Handle Ball End Hex Wrench 005-9-18610
1 TBR Sticker Kit 015-10212
V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Continued on pg. 2
2009 Kawasaki
ZX-6R
V.A.L.E.™ Slip-on Exhaust System with M-2 Canister
Part # 005-2410406V, 005-2410407V, 005-2410408V
Parts List
*Keep servo plugged
into harness but cables
will not be used.
