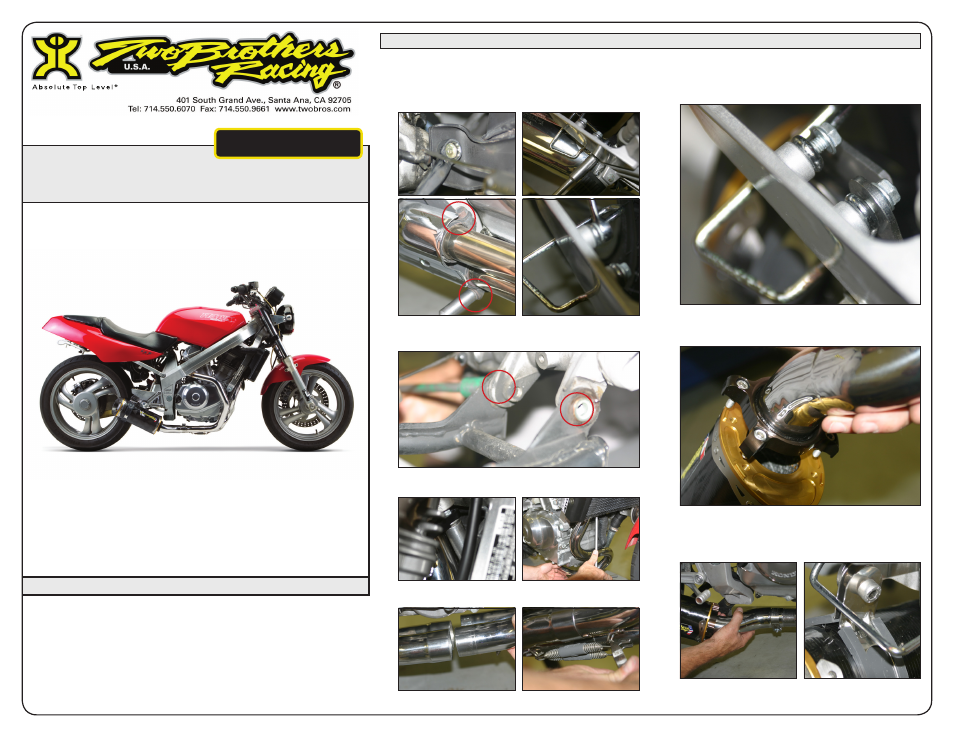

Two Brothers Racing Honda NT650GT HAWK - Manual

V.A.L.E.
V A R I A B L E A X I S L O C K I N G E X H A U S T
TM
IMPORTANT - PLEASE READ CAREFULLY
This exhaust system has not been tested with aftermarket or OEM accessories and
is not designed to work with them. (i.e. hard bags/ centerstand/ lisc. plate frames)
We recommend that this performance part be installed by a qualified motorcycle
technician. If you have any doubts as to your ability to install this performance
part, please consult with your local motorcycle dealer. Read all instructions first
before starting installation. Make sure the motorcycle and exhaust system are
completely cool before starting the installation. Also, make sure the bike is secure
on a centerstand or ideally a service lift during installation. Be sure to save all
stock components for possible use later.
Installation Instructions
7. Install TBR supplied muffler bracket to right side foot peg
assembly with using OEM mounting bolts. The bracket
will mount outside of forward wire heel cover and use
OEM 6mm upper bolt and OEM 8mm lower bolt and nut.
8. Loosely attach the V.A.L.E. TM muffler to the stainless steel
V.A.L.E. TM connector tube using the supplied 6x20mm
socket head cap screws and 6mm split washers.
9. Attach muffler assembly to headers with supplied 61mm
barrel clamp. Slide on rubber lined muffler clamp. Use
supplied 8x20mm socket head cap screw and 8mm nut
provided to secure muffler to hanger bracket.
1. Make sure the bike is completely cool before starting the
installation. Make sure the bike is secure on its sidestand
or ideally a service lift.
2. Remove OEM muffler assembly and heel guard.
3. Remove OEM header pipes.
4. Remove center stand.
5. Install TBR headers front and rear, use OEM copper
gaskets.
6. Install Merge collector using supplied spring hooks.
1988-1991 Honda
Hawk
V.A.L.E.™ Full Exhaust System with M-2 Canister
Part # 005-010106V / 005-010107V / 005-010108V
