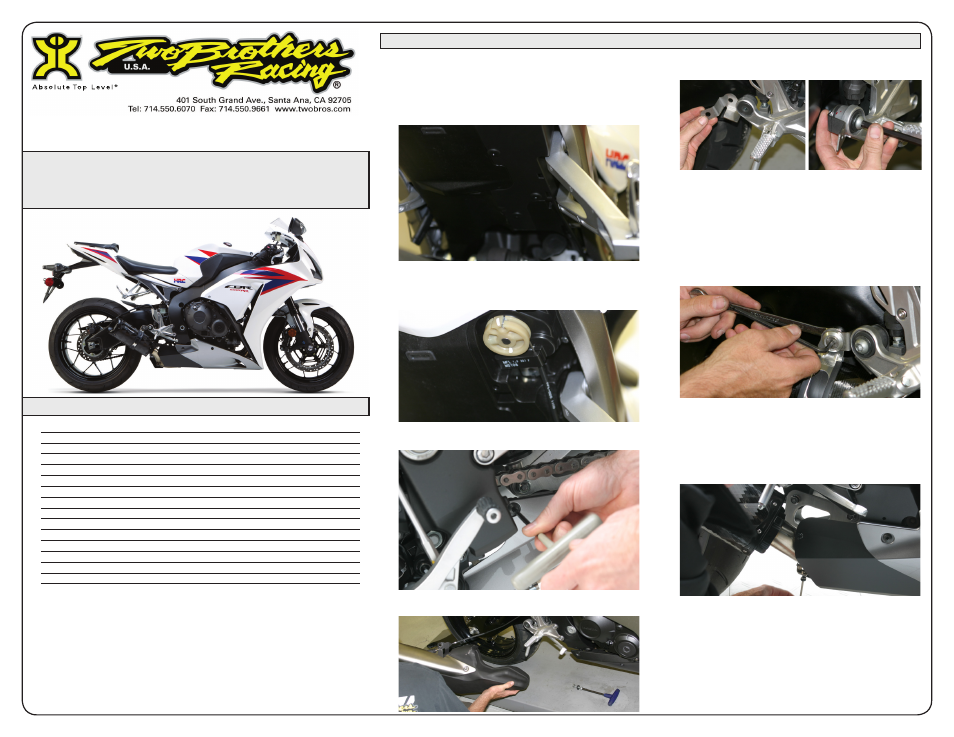

6. Install the muffler bracket using the supplied bracket and
OEM nut and bolt.
7. Loosely attach the V.A.L.E.
TM
muffler to the stainless
steel V.A.L.E.
TM
connector tube using the supplied
6x20mm socket head cap screws and 6mm split
washers.
8. Slide rubber-lined muffler clamp over TBR exhaust
canister, loosely slide the barrel clamp over the slip-tube.
Install the muffler assembly to the bike by attaching the
muffler clamp to the custom bracket using the supplied
counter-sunk washer, bolt and nut.
9. Once the muffler is aligned tighten the 4 6x20mm
V.A.L.E.
TM
screws with the supplied ball end hex key
Tighten the barrel clamp. Attach o2 sensor. Re-install
OEM lower fairing bolt to left side.
10. Install TBR lower side cover to slip-tube tabs and rear
right side fairing mount using supplied bolts.
11. Make sure everything is aligned and tighten all
hardware.
12. Before you run the bike, clean off all fingerprints and
dirt, as any oily residue will etch the metal and become
somewhat permanent when the system gets hot. Run
the bike and enjoy. Check for gaps or leaks. After 50 to
100 miles, recheck all fasteners for tightness.
Parts List
Installation Instructions
1. Make sure the bike is completely cool before starting
the installation. Make sure the bike is secure on a
centerstand or ideally a service lift.
2. Locate servo-motor cover under right side tail section in
wheel well. Remove push-pins to access.
3. Mark the location of servo. Disconnect Servo Butterfly
valve cable and re-route cable as shown (It will be
removed later with exhaust). Return servo to its original
location or engine light may be tripped.
4. Remove the lower fairing bolt from left side of
motorcycle to access o2 sensor and remove sensor.
5. Remove OEM muffler assembly.
Honda
CBR1000RR
V.A.L.E.™ Slip-on Exhaust System with M-2 Canister
Part # 005-31904
Qty.
Description
Part Number
1
M-2 Muffler Canister
Varies
1
Slip-On Tube Assembly
005-31904S
1
HARDWARE KIT
005-319-3
1
Custom Mounting Bracket
005-206B
1
Lower side cover
005-319SC
1
X-Ring Kit
005-7-2-3KIT
1
Muffler Clamp
005-2C
1
Barrel Clamp
005-27-63MSH
2
Button Head Cap Screws 6x10mm
005-BH608
1
8x20mm Socket Head Cap Screw
005-SHF820
1
8mm Aluminum Washer
005-WA8
1
8mm Flange Nut
005-FN8
1
O2 Sensor Kit
005-92-22KIT
1
TBR Sticker Kit
015-10212
