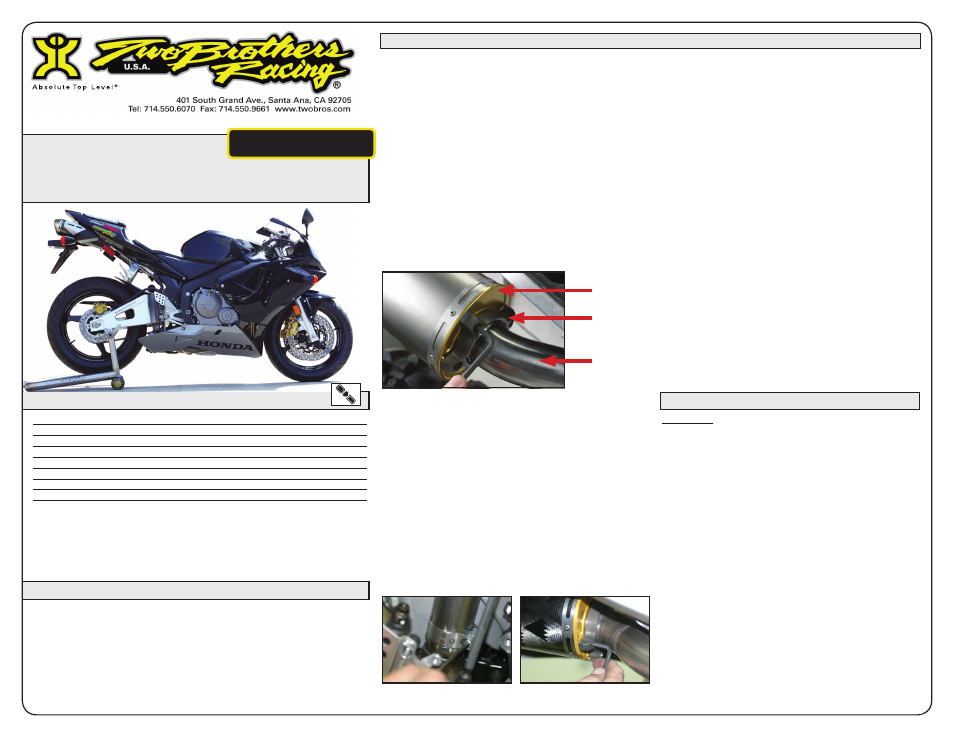

Two Brothers Racing Honda CBR600RR User Manual
V.a.l.e, Cbr600rr

V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Parts List
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified
motorcycle technician. If you have any doubts as to your ability to install
this performance part, please consult with your local motorcycle dealer.
Read all instructions first before starting installation. Make sure the
motorcycle and exhaust system are completely cool before starting the
installation. Also, make sure the bike is secure on a centerstand or ideally
a service lift during installation. Be sure to save all stock components for
possible use later.
Installation Instructions
1. Make sure the bike is completely cool before starting
the installation. Make sure the bike is secure on the
sidestand or ideally a rear service stand.
2. Remove the rightside foot peg.
3. Loosen the clamp that holds the muffler connector pipe
to the headers.
4. Remove the hardware that holds the stock muffler to the
tail section. Remove the muffler from the bike. Be sure
to remove the exhaust gasket (header/muffler junction)
as our system does not use it.
5. Attach the X-Lite™ V.A.L.E.™ assembly to the muffler
canister using the 4 (four) 6 x 14mm socket head cap
screws and lock washers provided. Leave loose for now.
6. Place a bead of high temp sealant on the end of the
header. Slide the S-bend connector pipe onto the end
of the headers, using the stainless steel T-bolt clamp to
attach it to the headers. Wipe off the excess sealant that
will squeeze out. Leave loose for now.
7. Carefully slide the muffler clamp over the muffler. You
may need to twist and turn the S-bend a little to get it
in the right place. Locate one tab of the canister clamp
on one side stock mounting tab and the other tab on
the other side of the stock mounting tab. Use the stock
hardware to secure it. Leave loose for now.
8. Make sure that the muffler canister is aligned correctly
and tighten all hardware. Securely tighten barrel clamp,
V.A.L.E.™assembly, and muffler clamp.
9. Before you run the bike, clean off all fingerprints and
dirt, as any oily residue will etch the metal and become
somewhat permanent when the system gets hot. Run
the bike and enjoy. It is normal for some white smoke to
appear the first time you start the bike. This is packing/
manufacturing oil from inside the pipe burning off.
Check for gaps or leaks. If you find a leak, a little high
temperature silicon sealant should fix it. After 50 to 100
miles, recheck all fasteners for tightness.
Qty.
Description
Part Number
1
CBR600RR M-2 Muffler Canister
Varies
1
CBR600RR Muffler Canister Clamp
Varies
2
CBR600RR Slip-On Tube
005-1104NV
1
HARDWARE KIT
005-11-3
1
X-Ring Kit
005-7-2-3KIT
1
Barrel Clamp
005-27-63MSH
1
TBR Sticker Kit
015-10212
2003-04 Honda
CBR600RR
V.A.L.E.™ Slip-on Exhaust System with M-2 Canister
Part # 005-110406M / 005-110407M / 005-110408M
Muffler Inlet
X-Lite™ Ring
S-Bend Tube
V.A.L.E.™ Assembly Detail
Care & Cleaning
Care & Cleaning
Keep system free of dirt and moisture. Store in a cool, dry place. Make sure vehicle is
completely cool before maintenance.
Stainless Header System: Polished stainless steel pipes will turn a light golden hue
after a few heat cycles, this is a normal characteristic of high quality stainless steel.
Clean using a mild water based spray cleaner. Always apply cleaner or polish with a soft,
clean cloth.
Titanium Header System: Polished titanium pipes will experience color shift ranging
from deep blue/purple through amber after a few heat cycles. This is a normal
characteristic of high quality titanium. Clean using a mild water based spray cleaner.
Always apply cleaner or polish with a soft, clean cloth.
Polished Aluminum Canisters: Use an aluminum or mag wheel polish to restore the
bright finish to factory spec.
Brushed Aluminum Canisters: Clean using a mild water based spray cleaner. Always
apply cleaner or polish with a soft, clean cloth.
Carbon Fiber Canisters: Clean using a mild water based spray cleaner. Always apply
cleaner or polish with a soft, clean cloth. Always make sure the fiberglass packing inside
is in good condition and not burned out, as exhaust heat inside an empty canister will
deteriorate the carbon fiber sleeve.
TBR sells repack kits (Road - #005-10038, Offroad - #005-10038MX) that include
everything you need to easily do it yourself.
Titanium Mufflers: For cleaning use a mild water based spray cleaner. Always apply
cleaner or polish with a soft, clean cloth. Always make sure the fiberglass packing inside
is in good condition and not burned out, as exhaust heat inside an empty canister will
deteriorate the carbon fiber sleeve.
TBR sells repack kits (Road - #005-10038, Offroad - #005-10038MX) that include
everything you need to easily do it yourself.
Repack all road canisters every 3,000 miles. Part #005-10038
Repack all offroad canisters after every 10 hours of use. Part #005-10038MX
NEVER dyno test your bike with carbon fiber or titanium canisters installed - the
intense heat and lack of cooling air can quickly burn through the canister material. Two
Brothers Racing does not provide a warranty for burned canisters.
