Crestron TPS-IMPC Interface Module

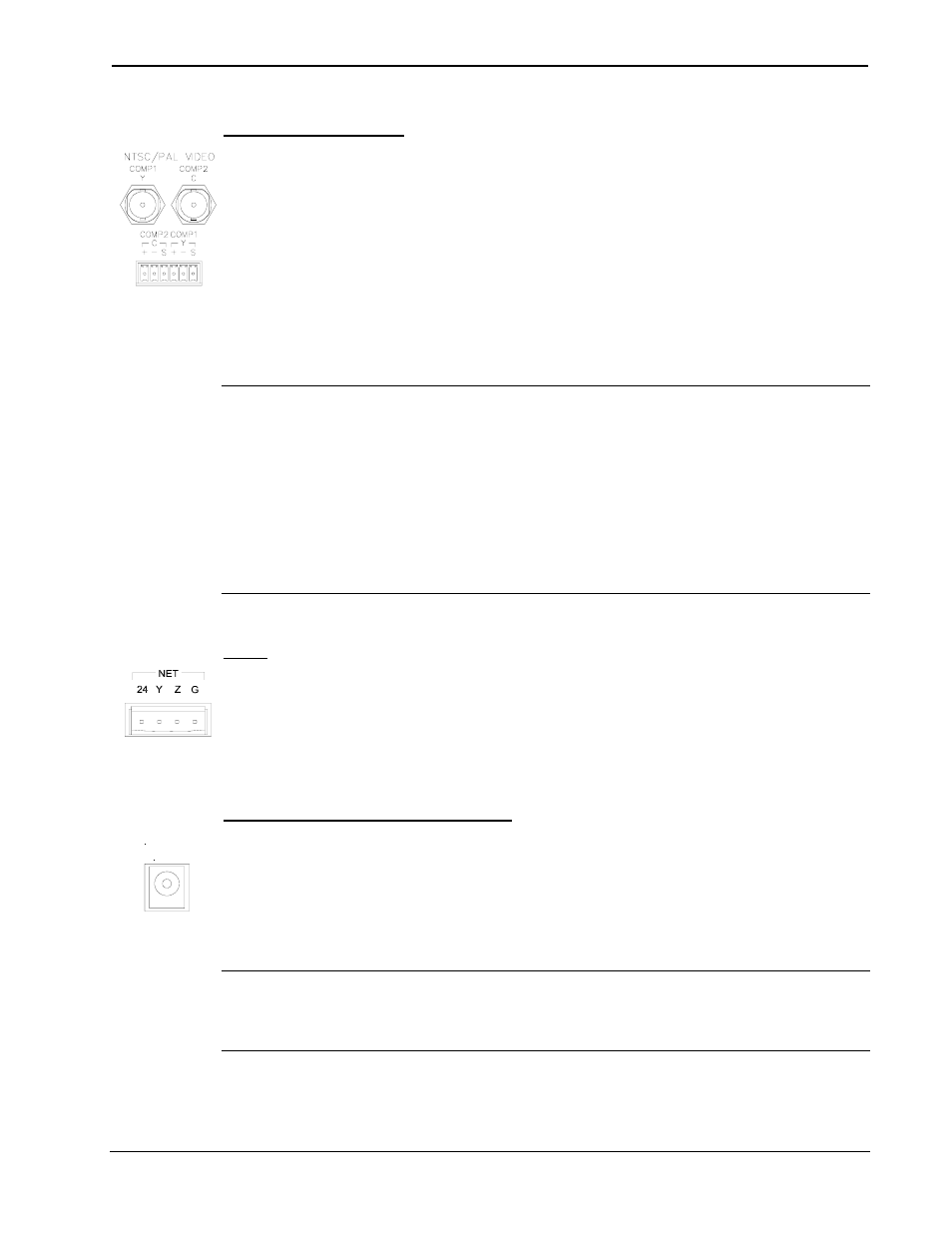

NTSC/PAL VIDEO
The NTSC/PAL video input consists of three connectors; two BNC
connectors for unbalanced video signals and one 6-pin mini-connector
for twisted pair wiring of balanced video signals. The video signal is
connected to these ports and requires a TPS-3000 or installation of the
TPS-VID-1 or TPS-VID-2 video card in a TPS-5000 or TPS-6000
touchpanel to display video. Consult the latest revision of the TPS-3000
Operations Guide (Doc. 6076) or TPS-VID-1/2 Operations & Installation
Guide (Doc. 6059) for details. Use either the two BNC connectors or the
six-pin connector for twisted pair wiring when connecting a video source.
NOTE: BNC connectors are physically located next to the twisted pair
connectors. Image is for illustration purposes only. Refer to the physical
view of the TPS-IMPC on page 2 for actual connector positions.
NOTE: The TPS-IMPC allows the use of either balanced or unbalanced
signals for video input. To select the signal type to be used, the DIP
switches located next to the MIC port must be set in the correct position.
Refer to “BAL/COAX” on page 6 for more information.
NET
This four-pin connector is used to connect to other Cresnet

peripherals
in a system and provide network power to the touchpanel if an external
power pack is not used. If making network connections to a control
system or Cresnet peripherals, refer to “Network Wiring” on page 7.
24 VDC, 2.0A (Power Supply)
24VDC
2.0A
This female connector is used to supply 24 VDC power to the
TPS-IMPC and the touchpanel from an optional power pack (Crestron
model PW-2420RU). When power is supplied to the TPS-IMPC through
this connector, a Cresnet power connection is not required to display
video on the touchpanel.
CAUTION: Use only Crestron power supplies for Crestron equipment.
Failure to do so could cause equipment damage or void the Crestron
warranty.
