Page 47
Fan
Dell™ Latitude™ D505 Service Manual
CAUTION:
Before performing the following procedures, read the safety instructions in your Product
Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching
an unpainted metal surface (such as the back panel) on the computer.
1. Follow the instructions in "
Preparing to Work Inside the Computer
2. Remove the
3. Remove the
4. Remove the
microprocessor thermal-cooling assembly
5. Pull straight up on the fan cable connector to disconnect it from the system board connector.

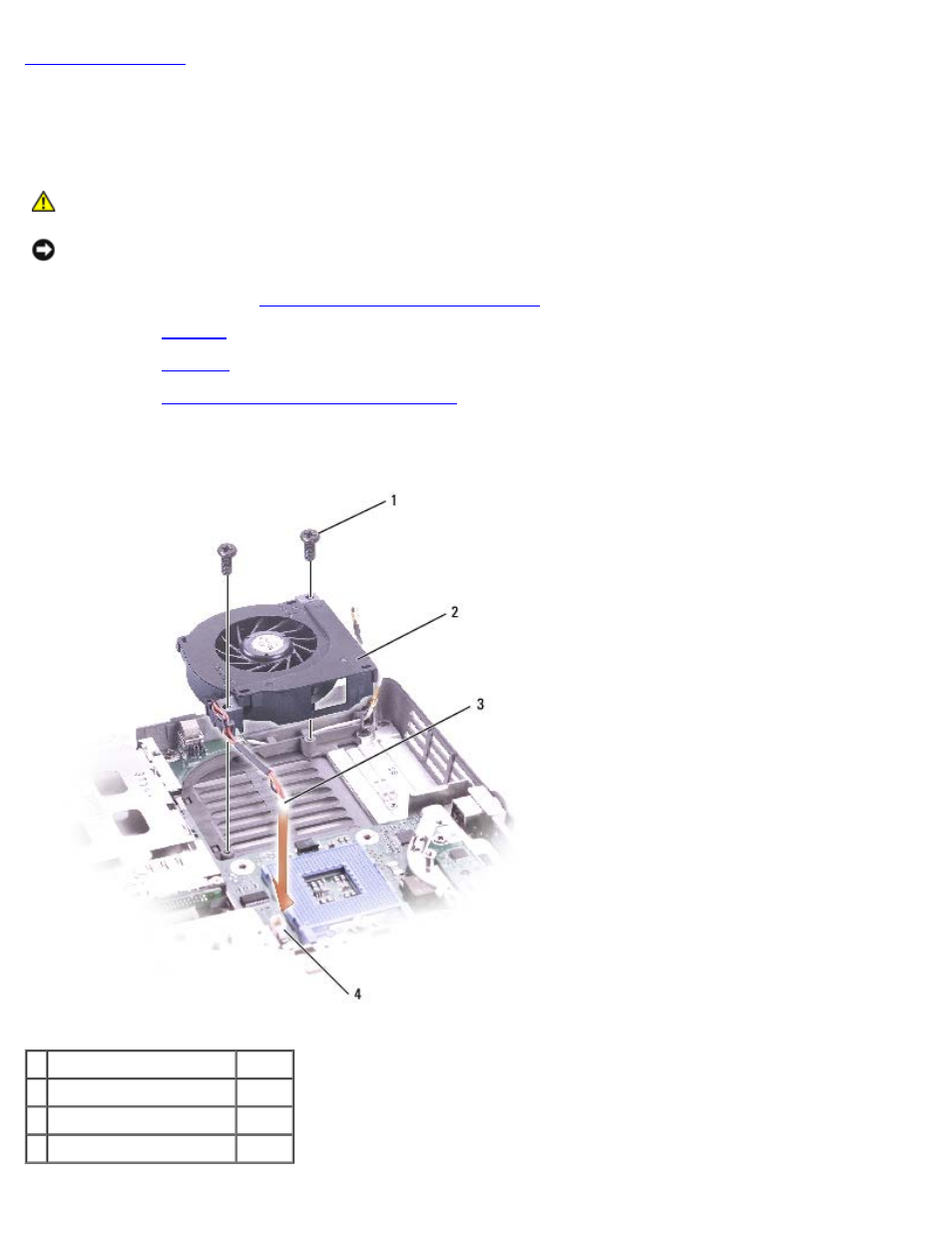

1 M2.5 x 8-mm screws (2) 3R690
2 fan
J1043
3 fan cable connector
4 system board connector
