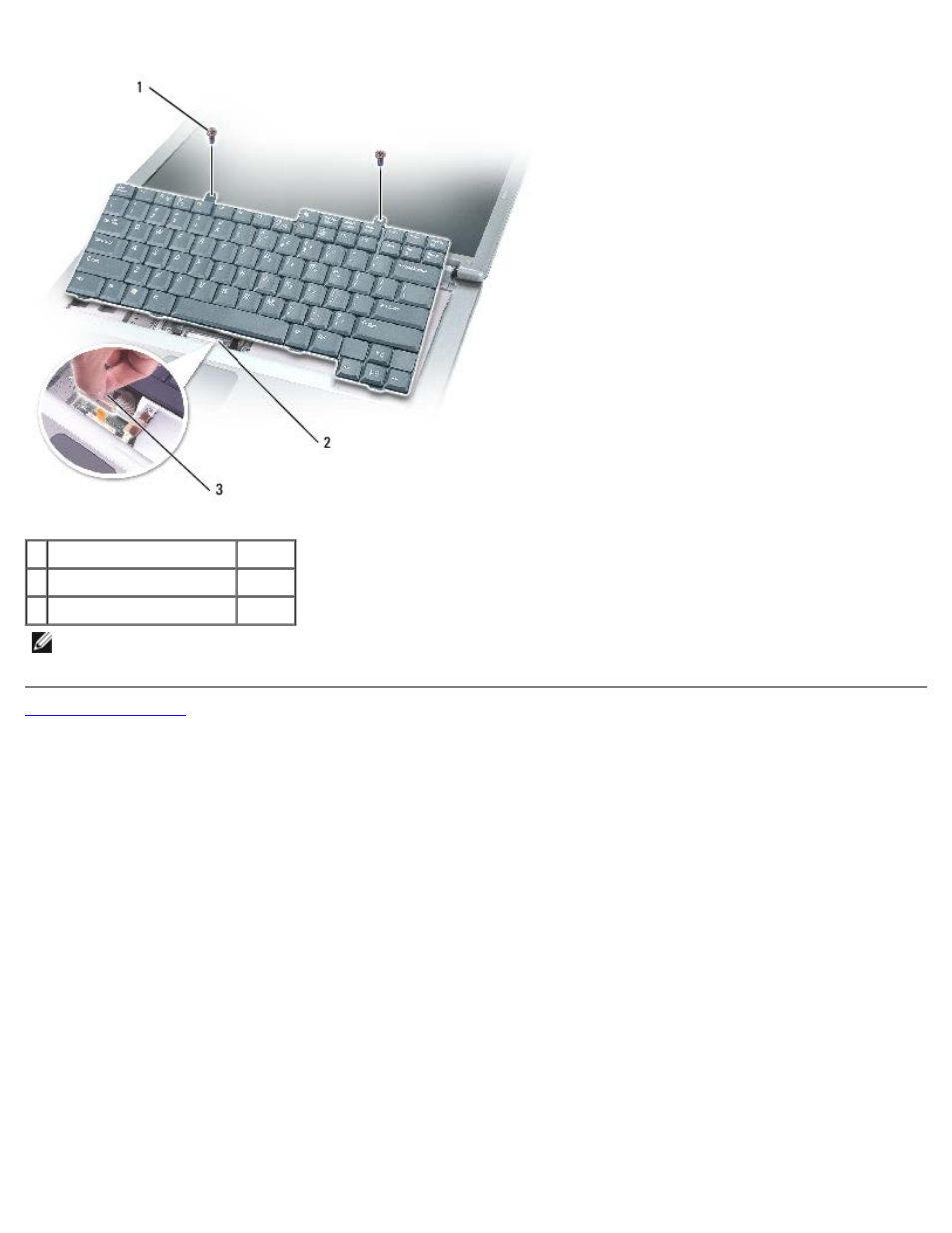

1 M2.5 x 5-mm screws (2) 63PDH
2 keyboard connector

3 keyboard connector tab

NOTE:

When you replace the keyboard, ensure that the keyboard tabs are completely in place to avoid scratching the

palm rest.
