Keyboard
Dell™ Latitude™ D505 Service Manual
CAUTION: Before performing the following procedures, read the safety instructions in your Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching
an unpainted metal surface (such as the back panel) on the computer.
1. Follow the instructions in " Preparing to Work Inside the Computer ."
2. Turn the computer top-side up and open it.

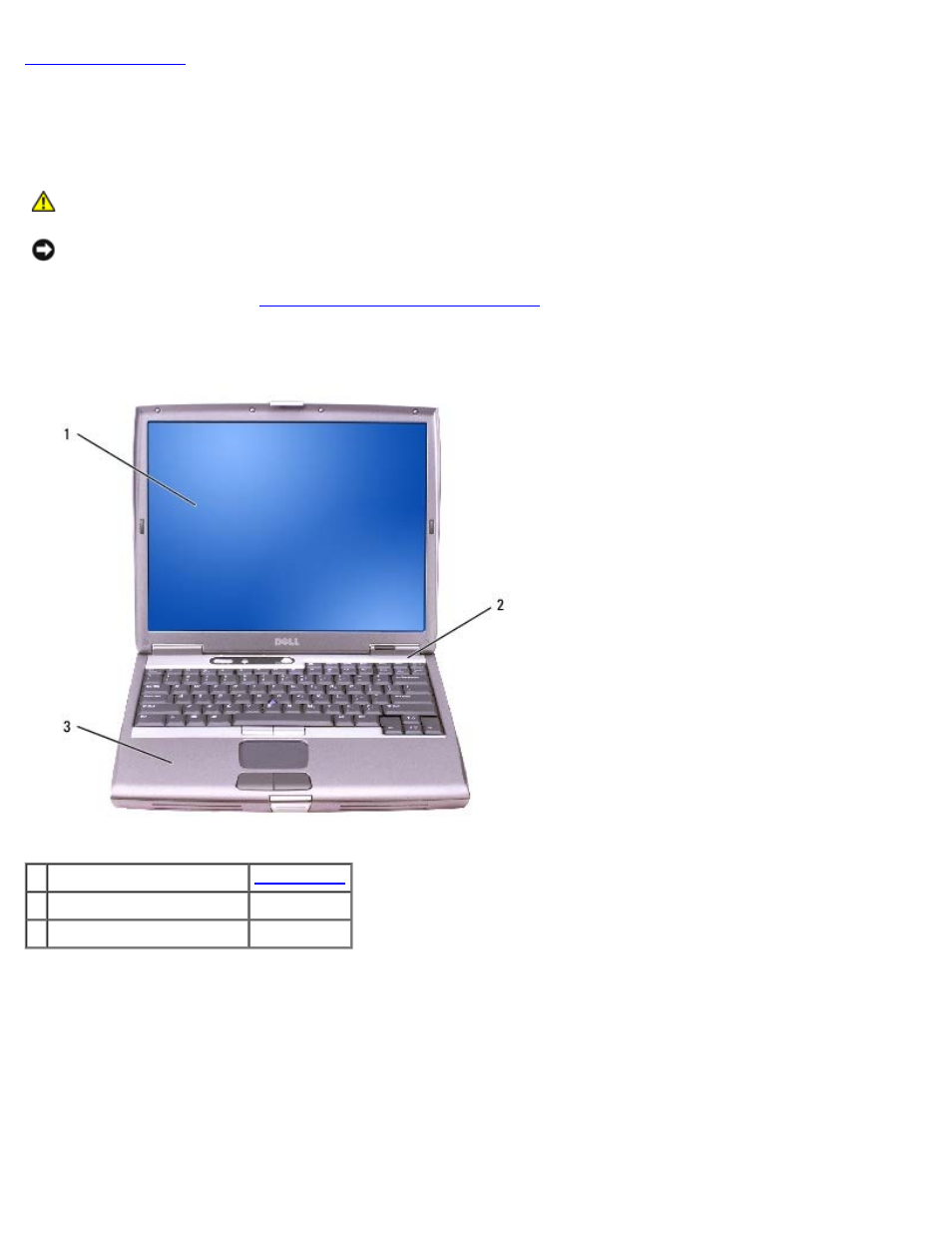

1 display see Mini RSL
2 center control cover H1371
3 palm rest (with touch pad) D1482
3. Remove the center control cover:
a. Open the display all the way (180 degrees) so that it lies flat against your work surface.
b. Starting on the right side of the computer, use a plastic scribe to pry up the center control cover. Lift it away
from the computer, and lay it aside.
