5-10 Dell OptiPlex GX1/GX1p Managed PC and OptiPlex NX1 Net PC Systems Service Manual
,QFK'LVNHWWH'ULYH$VVHPEO\

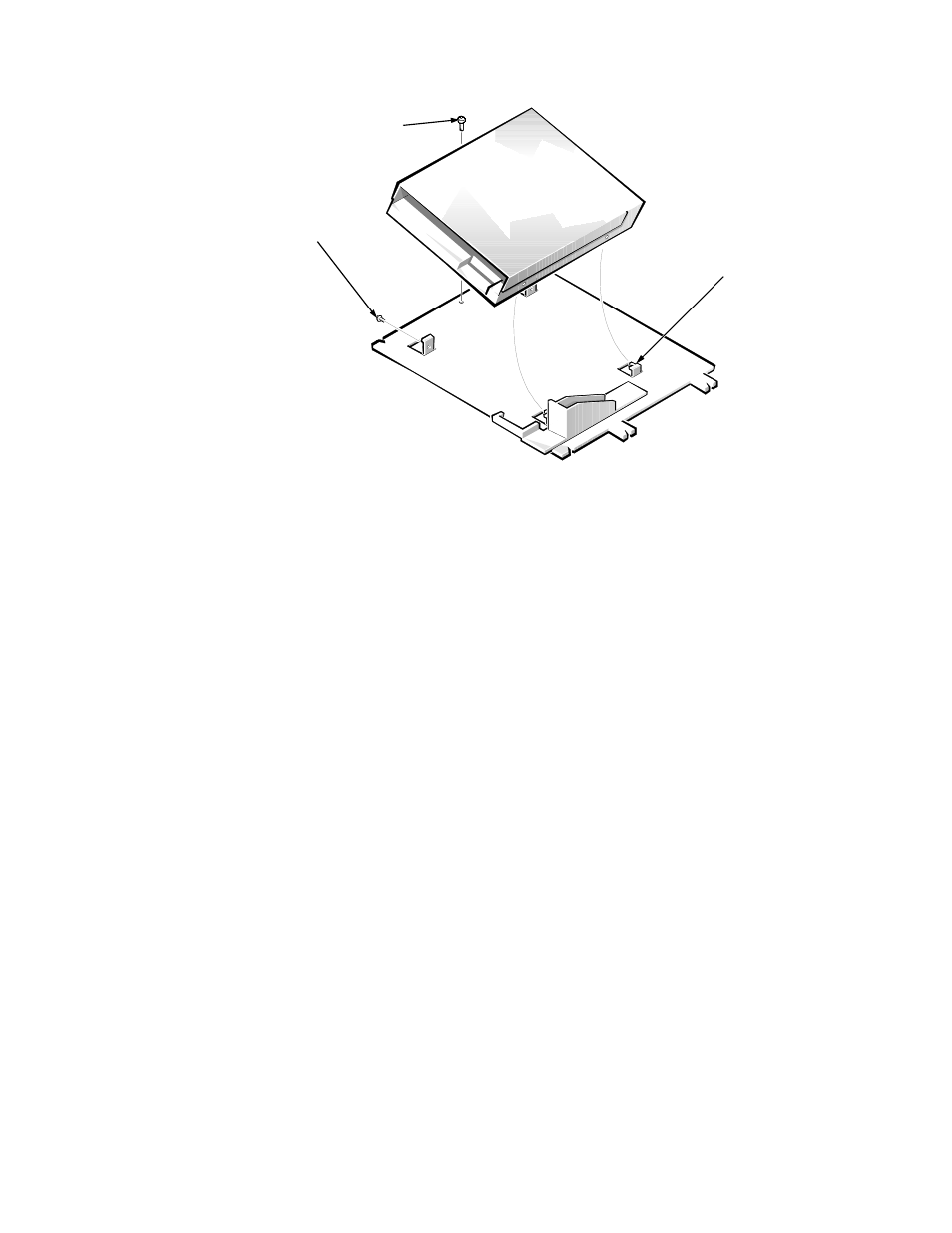

)LJXUH ,QFK 'LVNHWWH 'ULYH 5HPRYDO
To remove the 3.5-inch diskette drive, follow these steps:
1. Disconnect the DC power cable and the interface cable from the back of
the 3.5-inch diskette drive.
2. Remove the bracket-mounting screw.
3. Rotate the left side of the 3.5-inch diskette drive assembly up, and lift the
assembly out of the chassis.
4. Remove the two drive-mounting screws from the left side of the drive, and
remove the drive from the bracket.
When you replace the 3.5-inch diskette drive, be sure that the two hooks on
the right side of the bracket engage the mounting holes in the side of the
3.5-inch diskette drive.
bracket-mounting screw
hooks (2)
drive-mounting
screws (2)
front of computer
