System Components
Dell™ Inspiron™ XPS and Inspiron 9100 Service Manual
Back to Contents Page
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.

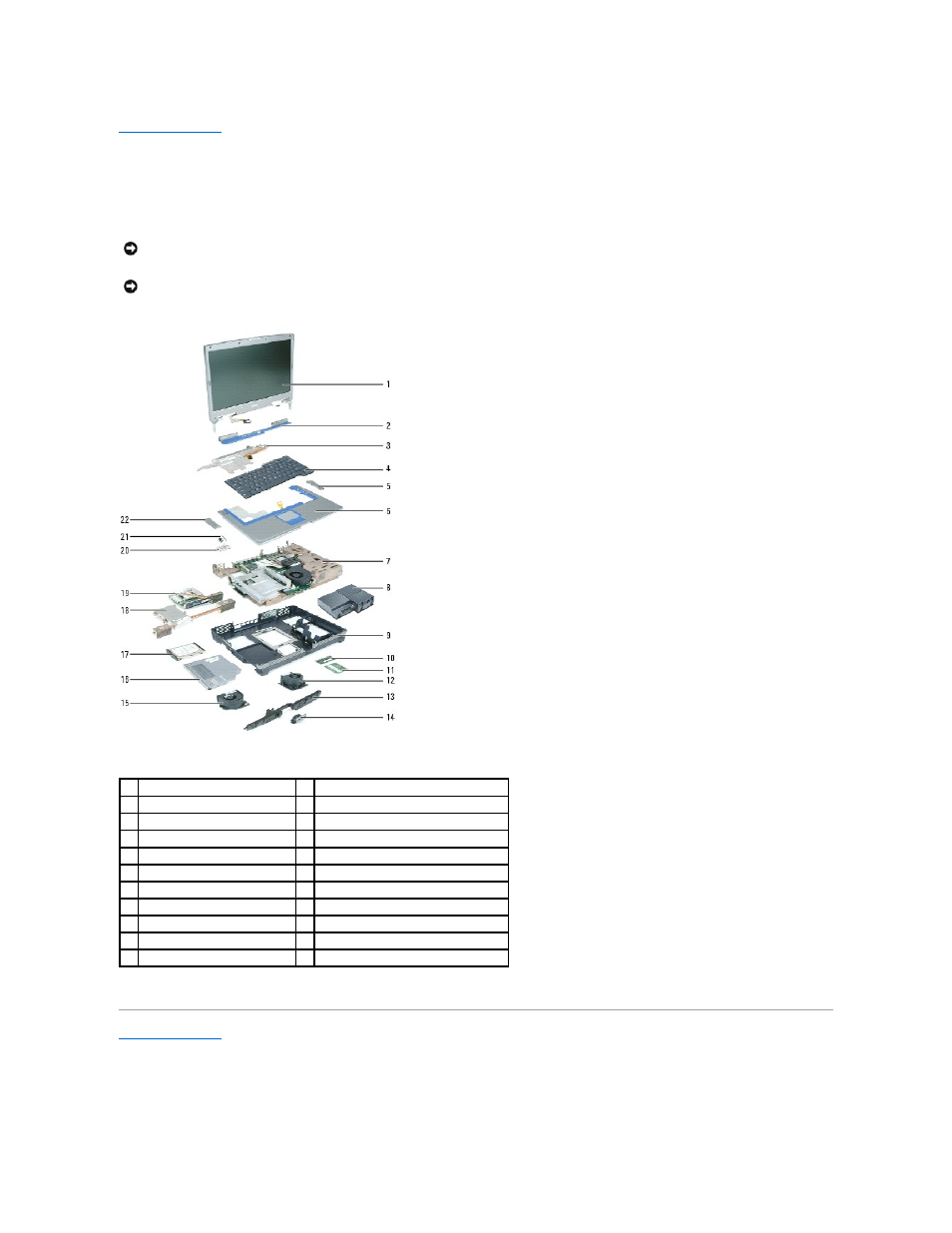

1 display assembly 12 fan 3
2 center hinge cover 13 speakers
3 keyboard bracket 14 display release latch
4 keyboard 15 fan 2
5 right hinge cover 16 CD drive
6 palm rest (with touch pad) 17 hard drive
7 system board 18 microprocessor thermal-cooling assembly
8 battery and subwoofer assembly 19 video card
9 bottom assembly 20 modem
10 memory 21 reserve battery
11 mini PCI card 22 left hinge cover
