Vermont Casting 1990 - Manual (Page 36)

36
Intrepid II Woodburning Stove
2000966
45
46
47
48
49
50
57
52
53 54
60
57
59
68
65
64
63
62
44
55
56
66
67
61
58
51
0966

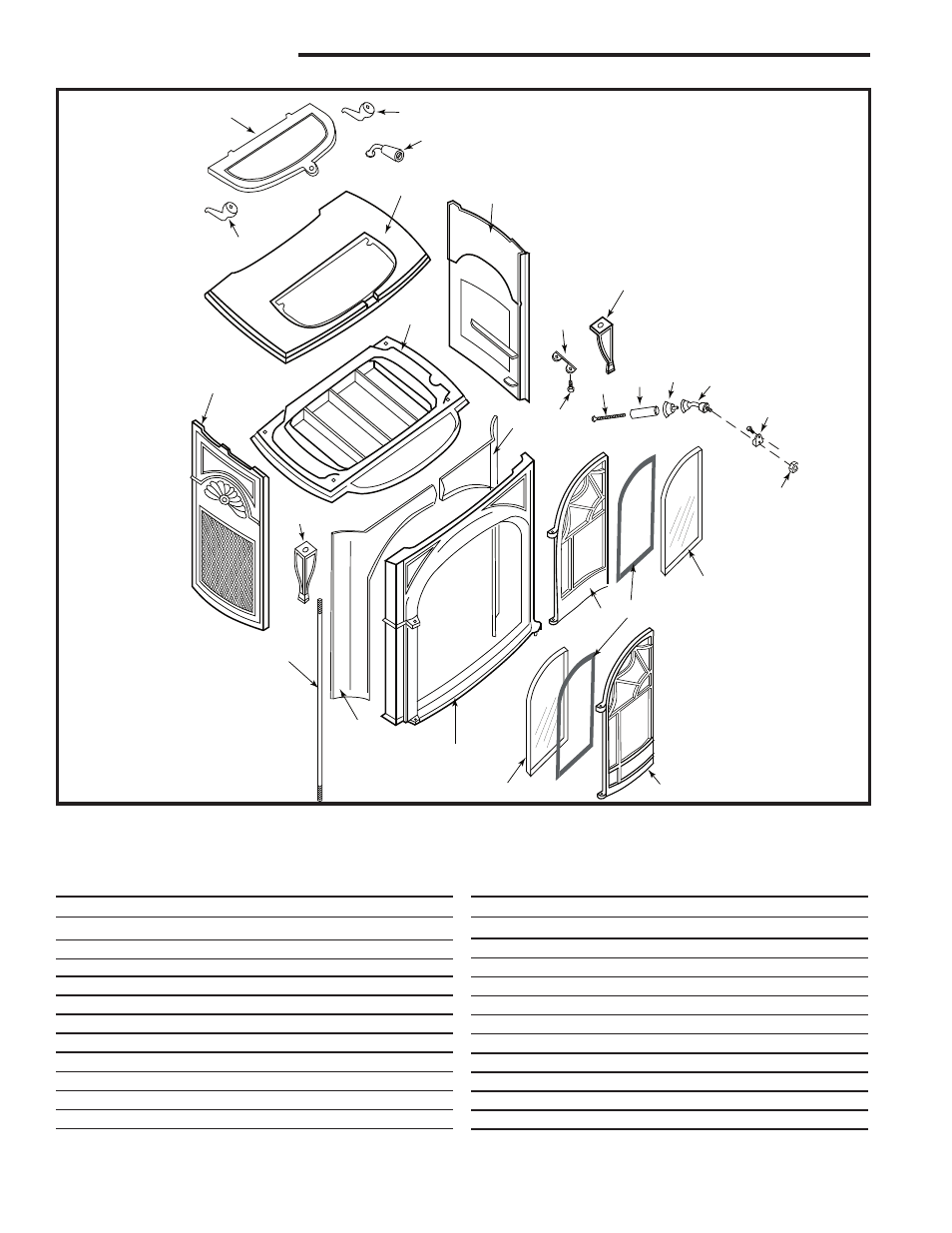

Intrepid II
exploded view
8/02
72
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
Item Description Part Number Item Description Part Number
Intrepid II Woodburning Stove
Model 1990 (continued)
24. Air Flap Pin 1601551
25. Clip 1601396
26. #10-24 x 3/8” Pan Head Bolt 1200983
27. #10-24 x 1/4” Pan Head Bolt 1200980
28. Secondary Probe Assembly 1601489
29. Secondary Air Link 1601486
30. Phillips Bolt, 1/4”-20 x 5/8” 1200896
31. Shim Ring 1201986
32. Secondary Air Flap 1601490
33. Refractory Chamber w/ Access Panel 1602527
34. Catalyst Block 30001153
35. Refractory Access Panel 1602516
36. Andiron 1306717
37. Left Insert 1308651
38. Grate 1308652
39. Right Insert 1308650
40. Ashpan Only 1400951
41. Ashpan Front Only 1306493
42. Ashpan Handle 30000973
43. Damper Tab 1601488
44. Griddle 1306356
45. Right Griddle Quad 1301832
