Vermont Casting 1990 - Manual (Page 35)

35
Intrepid II Woodburning Stove
2000966
1
2
3
4
5
6
7
8
9
10
12
13
16
17
18
20
9
21
22
25
26
24
23
21
36
37
38
39
40
41
15
11
12
9
42
43
43
27
28
29 30
31
32
33
35
34
0966
Intrepid II

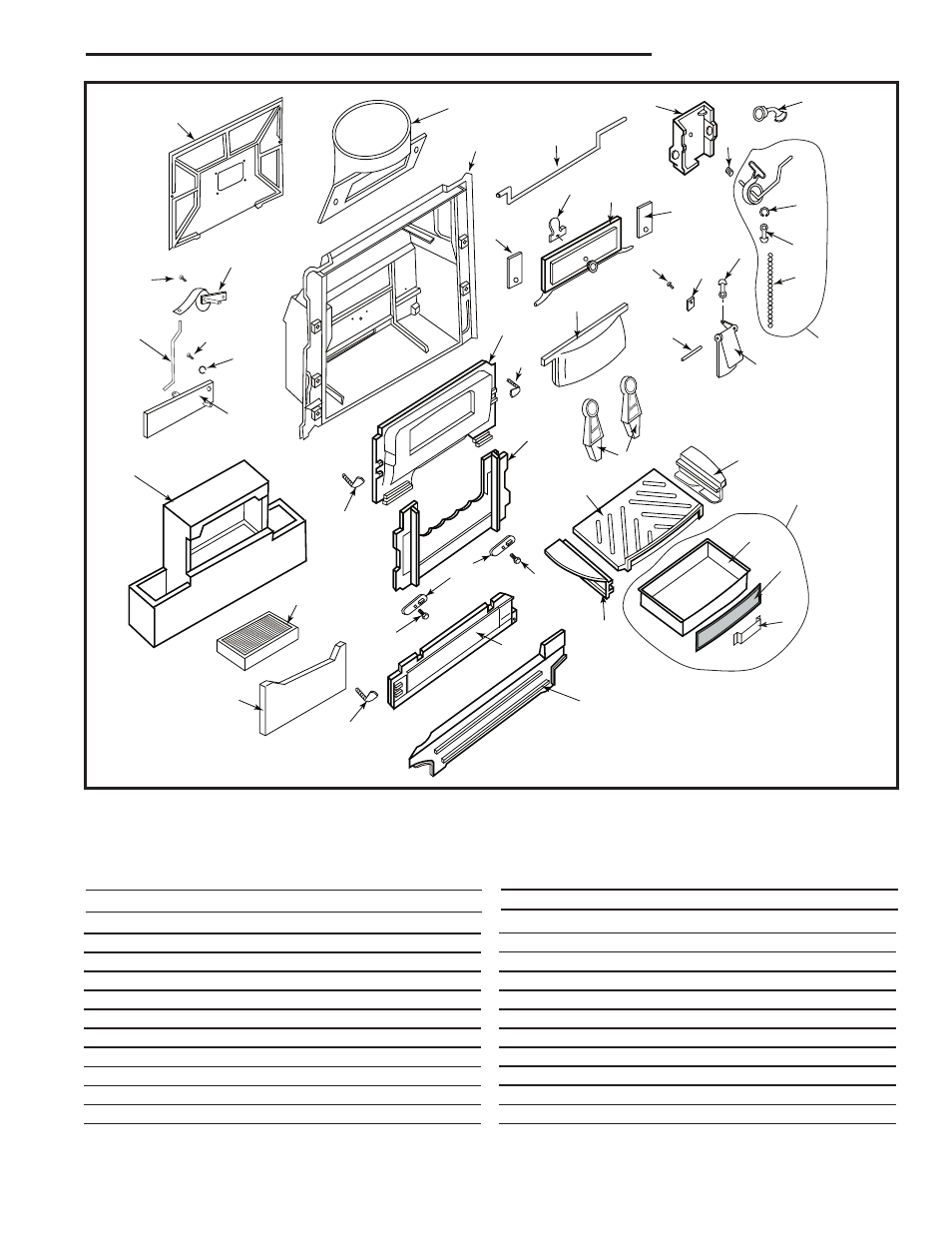

exploded view
11/00
22a
73
0966
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
Item Description Part Number
Intrepid II Woodburning Stove
Model 1990
Item Description Part Number
1. Secondary Air Cover 1306762
2. Flue Collar See Chart Pg. 36
3. Back Panel 1308662
4. Damper Rod 1602523
5. Damper Clip 1306725
6. Damper 1306701
7. Damper Housing 1306702
8. Throat Hood 30001649
9. Weld Screw 1201583
10. Upper Fireback 1306703
11. Fireback Clamp 1306724
12. 3/8” - 16 x 1¹⁄₂” Hex Bolt 1201456
13. Lower Fireback 1306704
15. Rear Air Tube 1308658
16. Thermostat Cover 1306711
17. Damper Handle Assembly 5004265
18. Friction Spring 1201846
20. Thermostat Clip 1601408
21. Ball Chain Fitting (2) 1201972
22. Ball Chain 1201960
22a. Thermostat Assembly 5005506
23. Primary Air Flap 1306710
