Installing Enclosure Components
31
4 Secure the physical disk to the carrier using the four screws removed
earlier. To avoid damaging the carrier, do not overtighten.

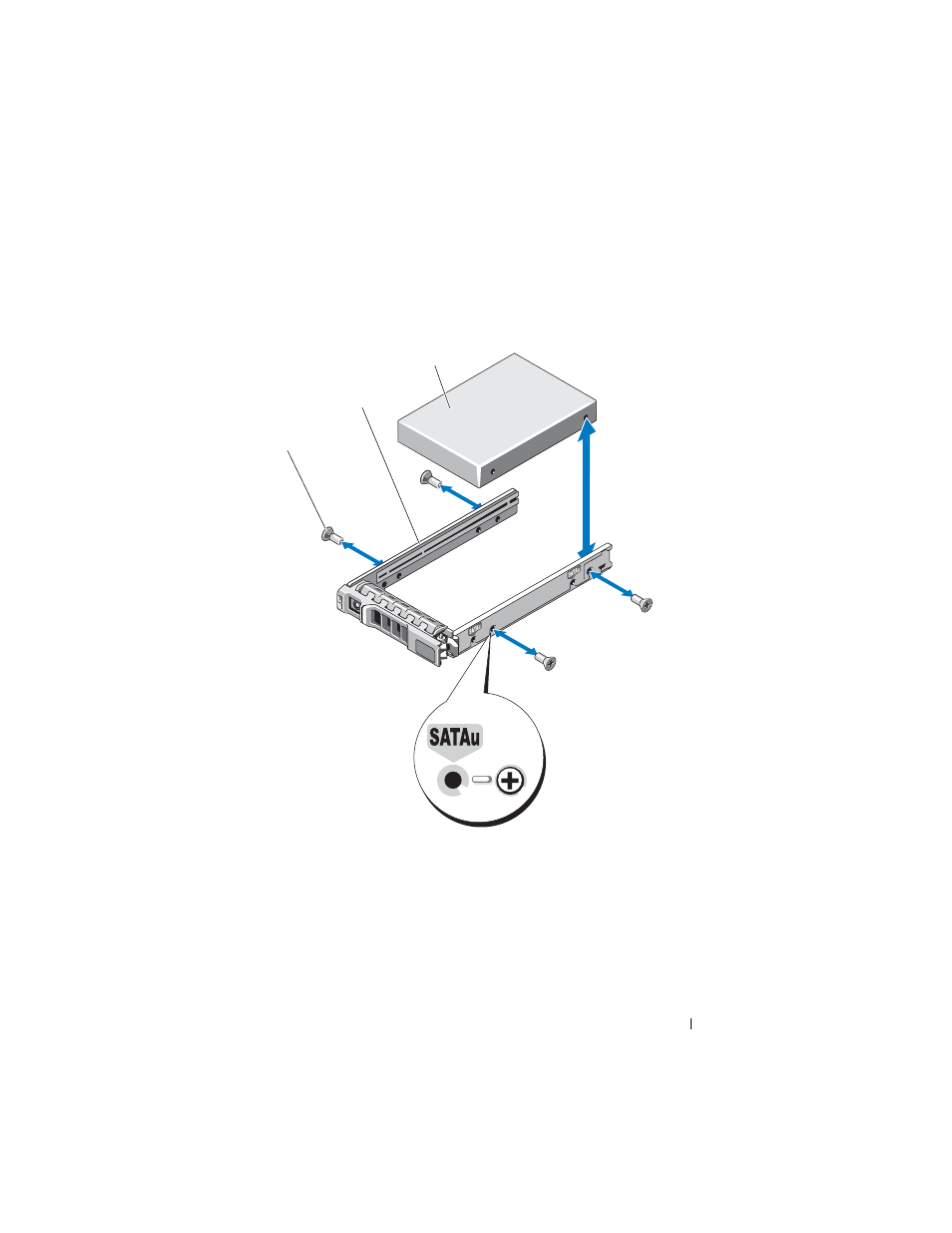

Figure 3-3. Installing the Physical Disk in the Carrier
5 With the physical disk carrier handle open, carefully align the physical
disk carrier guide rail with the appropriate disk slot on the chassis and
insert the physical disk (see Figure 3-2).
1 screws (4) 2 physical disk carrier
3 physical disk (top)
3
1
2
